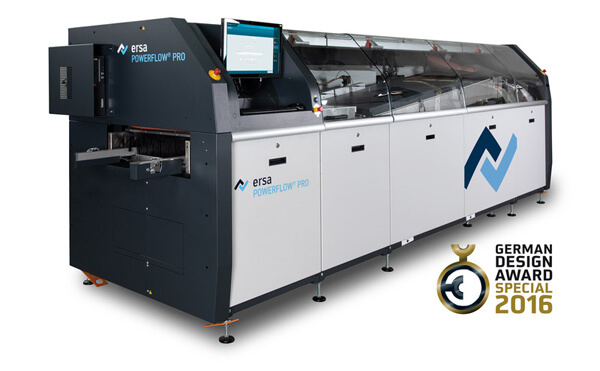

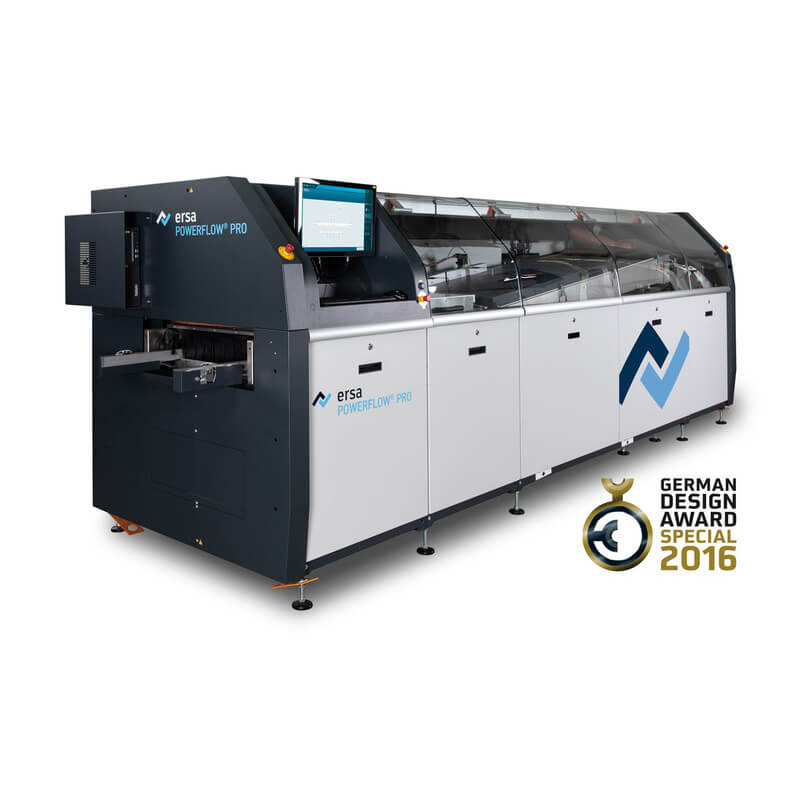

ERSA POWERFLOW PRO Wave Soldering Machine

JUKI

ERSA POWERFLOW PRO Wave Soldering Machine

Specifications:

ERSA POWERFLOW PRO Wave Soldering Machine

Compact full tunnel wave soldering system for cost-optimized wave soldering in a nitrogen atmosphere with near-time ROI

Targeted and economical flux application through freely defined spray field

External flux unit with separate suction unit separate from the process tunnel

Modular preheating configuration for flexible and reproducible heat input

Ideal solder nozzle combination for all application requirements

Robust, durable, loadable and automatically lubricated chain transport system

Insulated, gas-tight stainless steel process tunnel increases energy efficiency

Intelligent nitrogen control guarantees optimized N2 consumption and cost efficiency

Award-winning, modern user interface: ERSASOFT 5 with individual trace interface for transparent production processes

Universal integration into existing peripheral systems

ERSA POWERFLOW PRO Nitrogen Wave Soldering Machine

With the Ersa nitrogen-atmosphere wave soldering system POWERFLOW PRO, Ersa presents a basic system for demanding, cost-optimized wave soldering processes. The system focuses on proven machine concepts and offer future oriented and innovative solutions, which provides to its user an optimized process.

The easily accessible fluxer area offers excellent maintainability. With the upper and lower preheaters, the well-insulated tunnel ensures that the boards are completely heated through, even with high-mass assemblies. The coated solder module offers, on account of the availability of different wave formers, for each application the best solder quality and a high degree of repeatability. Nitrogen control with the rest-oxygen monitor maintains the O2 level in the nitrogen atmosphere level at the desired level.

Dimensions

Length: 4,450 mm

Width approx. 1,400 mm

Height approx. 1,600 mm

Conveyor systems

Type: finger conveyor, pallet conveyor

Maximum conveyor speed 3 m/min

Maximum working width up to 458 mm

Maximum height of components, top of board: up to 100 mm

Media supply

Nitrogen

Compressed air

Electrical power

Exhaust

Preheating

Heat transfer by convection, medium wave radiation and short wave radiation

Individually configurable up to a preheat length of 2,000 mm

Solder module

Subject to the configuration, solder content is between 525 to 630 kg

Options: Finger transport

Working width up to 330 / 400 / 458 mm

Spray monitoring on the fluxer

Extendable, maintenance-friendly fluxing unit

Quick-change spray head

Convection heater

Nitrogen control with analyzer

Touchscreen

Various scanner systems

Traceability
