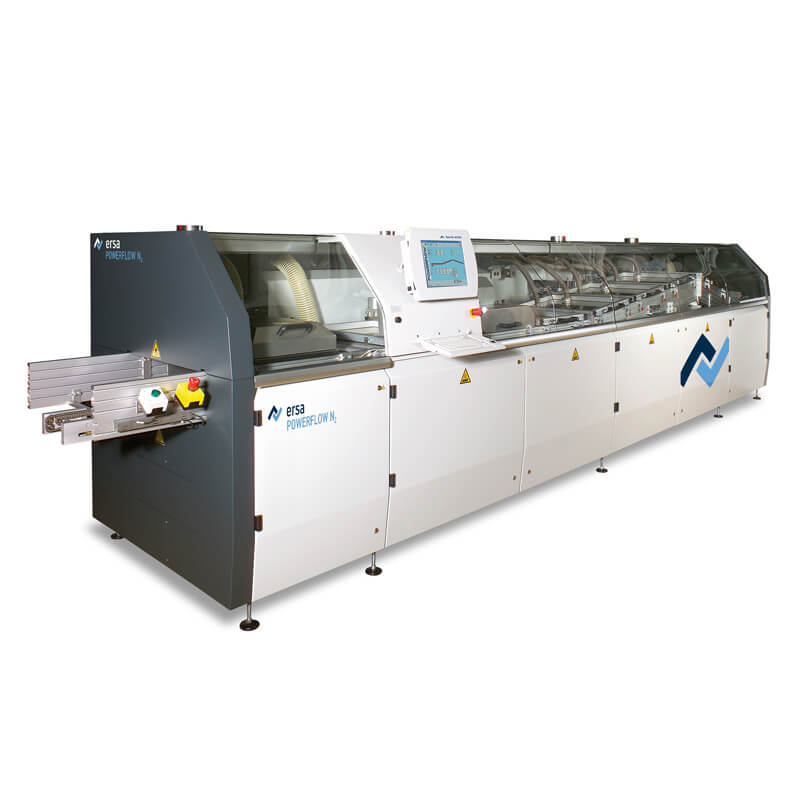

ERSA POWERFLOW N2 Wave Soldeirng Machine

solder content is between 525 to 725 kg
Working width: either 330 / 400 / 508 mm
Maximum height of components, top of board 80 / 120 / 150 mm

ERSA POWERFLOW N2 Wave Soldeirng Machine

Specifications:

ERSA POWERFLOW N2 Wave Soldeirng Machine

Superior process stability even at maximum throughput

Precise and economical flux deposition through ability to program areas to be fluxed

Modular preheat configuration for flexible and reproducible heat transfer

Ideal solder nozzle combinations for all application requirements

Prolonged cleanliness on account of the continuous cleaning of the process gas

Energy and cost efficiency through intelligent heating and nitrogen control algorithms

Ease of maintenance because of excellent accessibility to all areas of the system

Robust, heavy duty, durable and automatically lubricated chain conveyor system

Individual trace interface for transparent production processes

Universal integration into existing peripheral equipment

ERSA POWERFLOW N2 Wave Soldeirng Machine

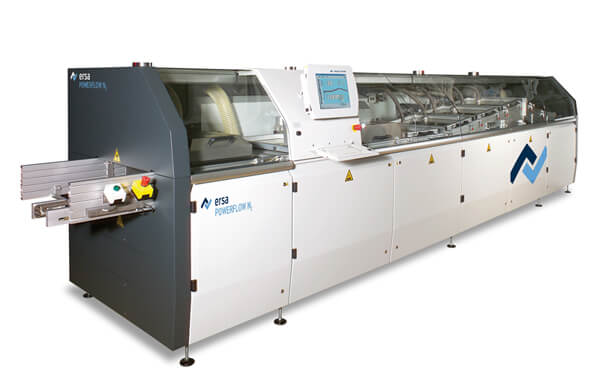

With the POWERFLOW N2 Wave Soldering System, Ersa presents the ultimate solution for demanding lead-free wave soldering processes. This high-end product is based on a system concept with numerous future oriented and intelligent solutions, which will provide substantial added value to its users.

With its intelligent controls, the motor-driven fluxer is able to selectively flux specific portions of the printed circuit board. The modular, individually configurable preheat concept ensures a high rate of heat transfer. A multitude of wave formers guarantee excellent solder result regardless of the application. The robust tunnel design and the stable, welded frame underline the durability and the ease of access to the system for service.

Dimensions

Length from 5,700 to 7,900 mm

Width approx. 1,500 mm

Height approx. 1,500 mm

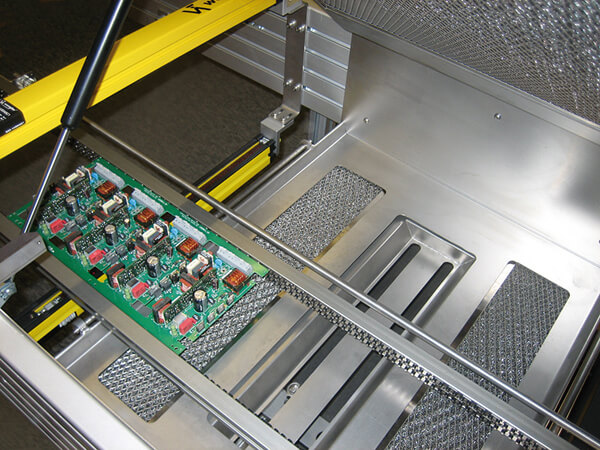

Conveyor systems

Type: finger conveyor, pallet conveyor

Maximum conveyor speed 3 m/min

Maximum working width up to 508 mm

Maximum PCB top side clearance up to 150 mm

Media supply

Nitrogen

Compressed air

Electrical power

Exhaust

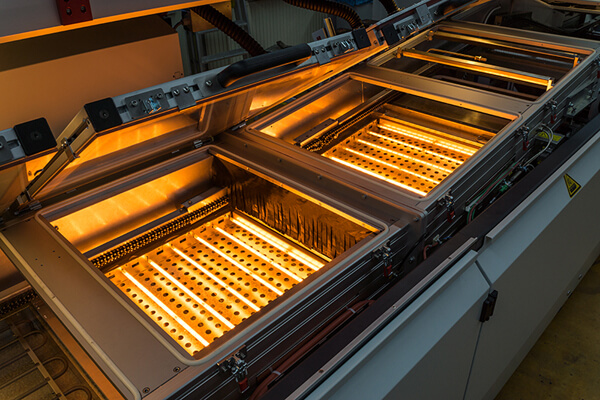

Preheating

Heat transfer by convection, medium wave radiation and short wave radiation

Individually configurable up to a preheat length of 3.2 m

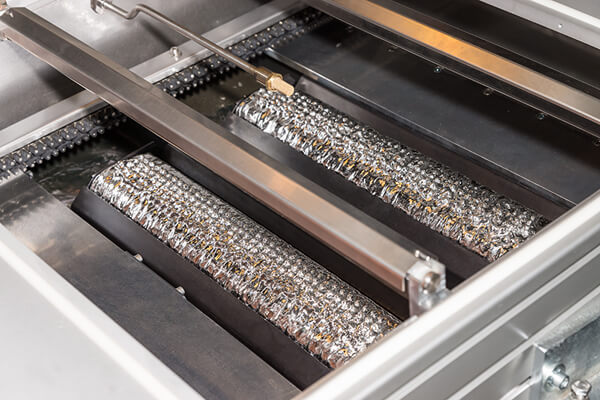

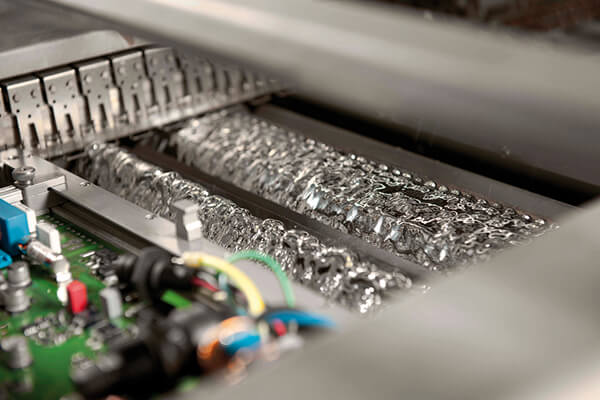

Solder module

Subject to the configuration, solder content is between 525 to 725 kg

Options:

Finger conveyor

Working width: either 330 / 400 / 508 mm

Maximum height of components, top of board 80 / 120 / 150 mm

Split conveyor

Programmable center support

Spray monitoring of the fluxer

Pyrometer control

Dual solder module for different alloys

Process gas cleaning

Traceability
