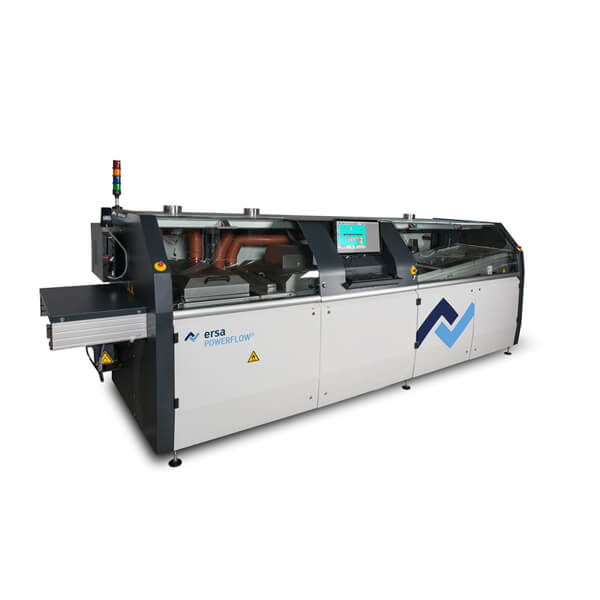

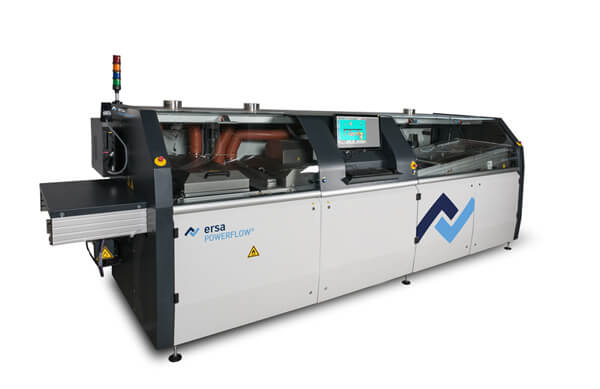

ERSA POWERFLOW Wave Soldeing Machine

Length from 4,200 to 4,950 mm
Width 1,510 mm
Height 1,565 mm
Weight: 2,200 bis 3,000 kg
Max PCB width:508 mm

ERSA POWERFLOW Wave Soldeing Machine

Specifications:

ERSA POWERFLOW Wave Soldeing Machine

Dimensions

Length from 4,200 to 4,950 mm

Width 1,510 mm

Height 1,565 mm

Weight: 2,200 bis 3,000 kg

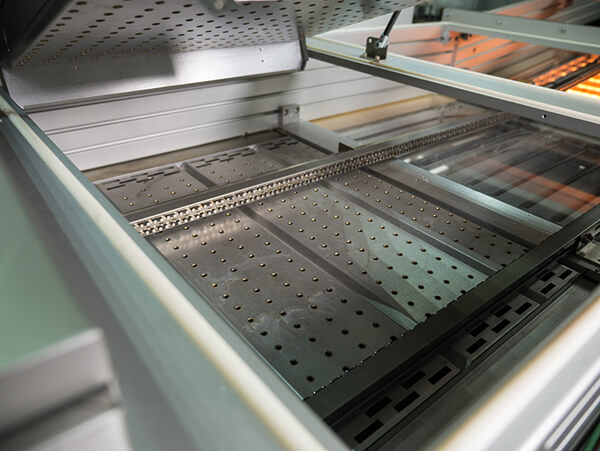

Conveyor systems

Finger conveyor

Maximum conveyor speed 2.5 m/min

Maximum working width upt o 508 mm

Maximum PCB top side clearanceup to 120 mm

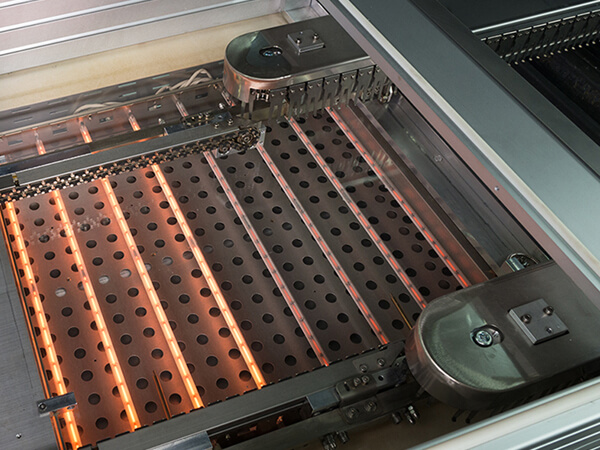

Preaheat module bottom-side

Dynamic short-wave emitter - max. 10.4 kW (power controlled)

Medium-wave emitter, max. 6 kW (controlled)

Convection module, max. 6 kW (controlled)

Dimensions: 600 mm length each

Soldering module

Capacity: ca. 9.8 kW

Solder volume: approx. 820 kg lead-free alloy

Solder temperature: max. 300 °C

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
