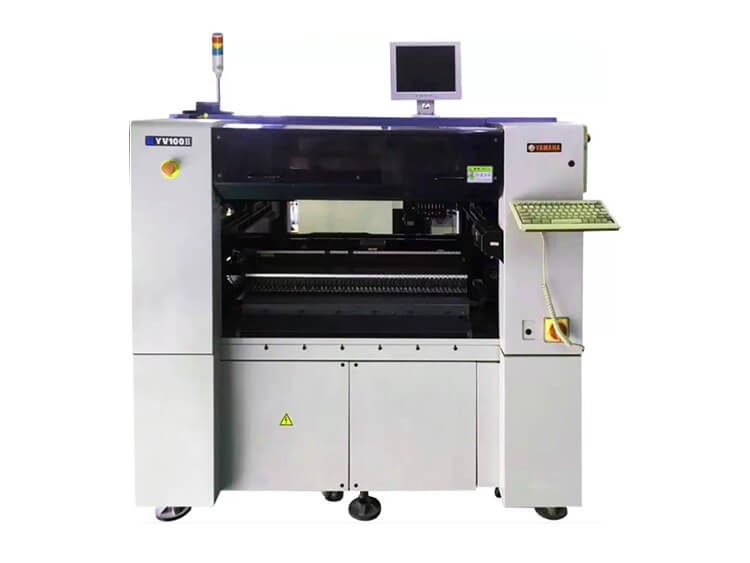

Yamaha YV100II Pick and Place Machine

Yamaha YV100II Chip Mounter
Patch speed 12000
l1650 * w1350 * h1810
weight 1300kg

Yamaha YV100II Pick and Place Machine

Specifications:

Yamaha YV100II Pick and Place Machine

Yamaha YV100II parameters

1. Based on the reliability of the basic structure of the high-speed machine

2. Protection components of the mount

3.0.25 seconds / CHIP high-speed mounting

4 can be mounted 0.5 feet spacing 32mm QFP

5. High-speed image processing

6.2 cameras reduce production time

7. Newly designed high rigidity frame

8. Increase the speed of the shaft

9. Can handle a variety of components

10. The most suitable for computer SIMM production with 8 wired head

Substrate size: L600 * W400 (Max) / L50 * W50 (Min)

Substrate thickness 0.4-3.0

Substrate conveying direction right - left

Mounting accuracy ± 0.1mm / CHIP ± 0.08 / QFP

Mounting Speed 0.25 sec / CHIP 1.7 sec / QFP

Original Type Ribbon original: 100 (MAX, 8MM with conversion)

Tray Original: 80 kinds (TMAX, YTF use)

The original form of supply 8-56mm broadband, rod, bulk, tray

Placement Original 1005 ~ QFP'SQP'SOJ'PLCC (25mm) BGA (0.4p)

Power three-phase AC220 / 208/230/240/380/400 / 416V ± 10%, 50 / 60HZ

Power 4KVA

Pressure above 0.55MPA, 350MIN

Patch speed 12000 (grain / hour)

Dimensions L1650 * W1350 * H1810

Weight 1300 (kg)

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
