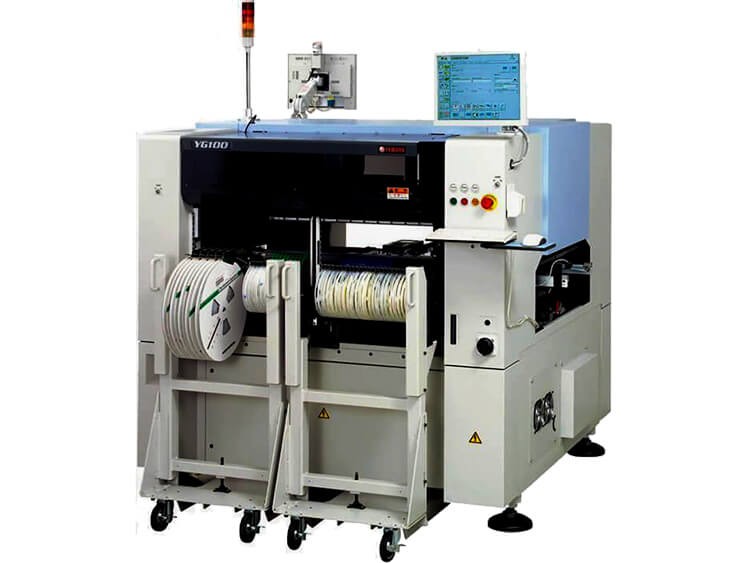

Yamaha YG100 Pick and Place Machine

Yamaha YG100 chip mounter
1,650(L)x1,562(W)x1,850(H)mm
Patch speed: 24,000 CPH
Weight: 1,630kg

Yamaha YG100 Pick and Place Machine

Specifications:

Yamaha YG100 Pick and Place Machine

YAMAHA YG100 chip mounter is a high-performance, high-precision placement machine produced by YAMAHA specifically for high-speed general purpose machines,it can simultaneously mount different types of special-shaped components.Using YAMAHA's newly designed head structure,all nozzles up and down control are controlled by the electric motor, The machine mounting accuracy is greatly improved compared to the previous memory.

YAMAHA YG100 chip mounter high-speed placement chip, high-precision, high-speed modular placement machine, high rigidity dual drive structure,High-performance servo system, high-resolution digital multi-vision camera, multiple precision correction system.

Automatically adjust the transmission width, automatically adjust the height of the mounting surface, belonging to the YG series classic models.The theory is 25,000 points per hour.

The actual production speed is about 15,000 points per hour.

1. YAMAHA YG100 chip mounter's advantages:

Mounting range from 01005 (Inch) micro-components to 45mm components.

Corresponding to the large substrate size L510xW440mm.

96 kinds of large component varieties.

Patch speed: 24,000 CPH (0.15 seconds/CHIP)

Mounting accuracy: (μ+3σ)±0.03mm/CHIP

Repeatability (3σ): ±0.03mm/CHIP

Mounting PCB Size: L50×W50mm~L510×W440mm

Component Types Belt Packaging: 120 types (converted to 8mm tape)

2. YAMAHA YG100 chip mounter's parameters:

SMD Components: 0402(MM)-45MMX45MM Components SOP SOJ PLCC QFP BGA

SMD components can be placed 100 kinds (8MM)

Mounter size: L1650XW1562X1470

Yamaha YG100 chip mounter specification and details as following:

1) Board size: M-Type: L460xW330 ~ L50xW50mm/t = 0.4 ~ 3.0mmL-Type:

L460xW440 ~ L50xW50mm/t = 0.4 ~ 3.0mm * sATS use: L460xW440 ~ L50xW50mm

2) Mounting speed: Chip: 0.15 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories 3)

IPC9850 conditions: 17700CPH, Chip: 0.20 seconds / accessories

4) Mounting accuracy: Chip: ± 0.05mm (3σ) / QFP: ± 0.05mm (3σ)

5) Mounting angle: (0.01±180° units)

6) Supported components: 0402 to SOP, SOJ, 84-pin PLCC, 0.5mm pitch QFPBGA,

CSP□31mm, 100mm connector, IC socket.

7) Equipment Parts Height: 15mm

8) Part identification methods: multi-angle illumination digital multi-camera system (34 pixels),multi-angle lighting good vision system (79 pixels).

9) Operation Software: YGOS (FullLine Mode, OnLineHelp, rich accessories and internal organs)

10) Optimization Software: Basic Services (Head and Feeder Numbers,Automatically Specified by the Installer)

11) Remote Control Software: Select (OnLine and OffLine Functions Available

12) Communication port: (Ethernet has Lan&RS232C)

13) Safety device: Head collision protection device in two modes: SoftLimit and HardLimit.

The CoverInterlock switch is used for head and collision prevention.

14) Power supply: 3-phase AC 416~200V, V± 10%, 50/60Hz, 4.8kVA

15) Air supply: 5.5kg/ (DryAir)/140/min

16) Size and Weight: 1,650(L)x1,562(W)x1,850(H)mm

17) Weight: 1,630kg
