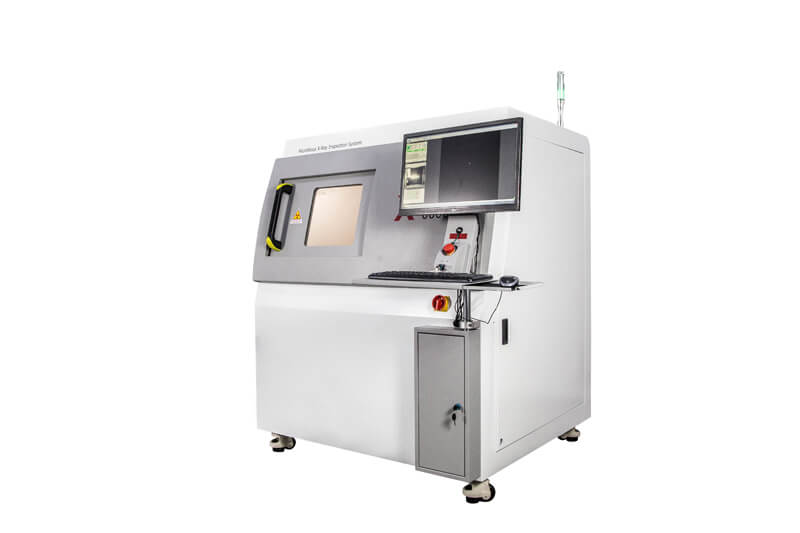

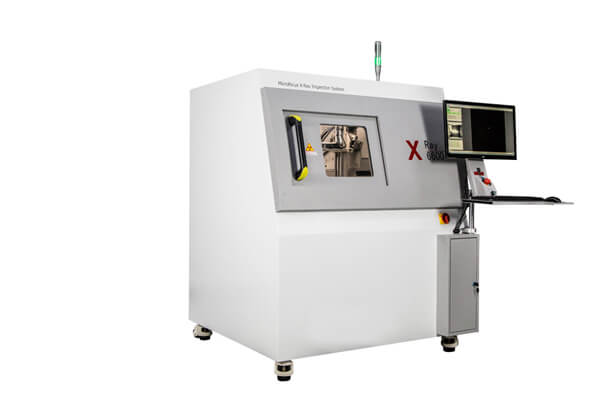

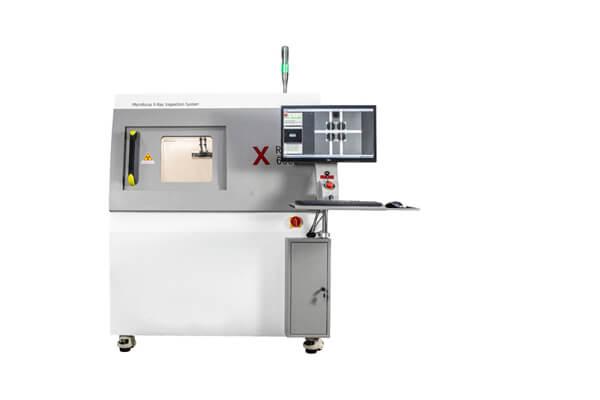

SMT X Ray Machine

  • SMT X Ray machine
  • Stage size 640mm*540mm
  • Resolution 1176*1104
  • Dimension L:1360mm,W:1360mm,H:1650mm
  • Product description: SMT PCB X Ray machine, PCB quality inspection equipment, Net weight 1200kg Stage size 640mm*540mm, Dimension L:1360mm,W:1360mm,H:1650mm
  • INQUIRY

SMT X Ray Machine

Specifications:

Application Field
1.Semiconductor package
2.Electronic connector module
3.Die Casting
4.Cars
5.Battery
6.LED
7.PCB'A
8.Other application

Mainly Functions

Functions

Advantages

X-ray tube and detector can be moved along the Z axis

can be detected the
Defects less than 2.5μm

Software setting voltage and current

Easy maintenance, with long life

Can control the speed in X-Y direction

Easy operationTraining time just need 15minutes

Editable detecting procedures

Suitable for the large batch detecting

Detectors maximum inclination 70 °

Semiautomatic to identify OK / NG  in Products

Large navigation window, mouse clicks can move the stage to a position that you need.

High accuracy detection

Can meet the size for kinds of samples

allows a unique perspective to detect sample

Technical Parameters

Items

Contents

Model

X-6600

X-RAY launching tube

Tube Type

Sealed type X-ray Tube

Maximum tube voltage

90kV

Maximum tube current

0.2mA

Focal size

5um

Magnification

Geometric magnification150X

System magnification1000X

Detector

Image Speed

30 fps

Resolution

1176*1104

Tilt angle

Detector60°Tilting

Cabinet Specifications

Stage size

640mm*540mm

Dimension

L1360mm,W1360mm,H1650mm

Net weight

1200kg

Input voltage

AC 110-220V +10%)(international general power supply

X-ray leakage amount

1 u Sv/h

Operation System

Windows 7

Total power

1.5Kw

Standard configuration

Items

Quantity

Unit

Remark

90KV-5umSealed type X ray Tube

1

PCS

Stage

1

PCS

Size640mm*540mm

Flat Panel Detector

1

PCS

High definition

Image processor CPU

1

PCS


Full-featured

LCD Monitor

1

PCS

24’’

Stage Control Parts

1.by the space bar to adjust stage speed: Slow, Constant and Fast

2.Keyboard control X, Y, Z axis motion and the inclined angle

3.User can detect the samples automatically by programmed

4.Large navigation window, the image is very clear, mouse clicks will move the stage to a position that you need.

NC programming

1. A simple mouse clicks will create a Testing procedures

2. The stage can be X, Y axis positioning; X-ray tube and the detector will be positioning in Z axis

3. Software setting voltage and current

4. Image setting: Brightness, contrast, automatic gain and exposure

5. user can set the program switch pause time

6. The anti-collision system can meet the maximum tilt and observe objects

7. Automatic analysis BGA diameter, Void ratio, size and roundness
