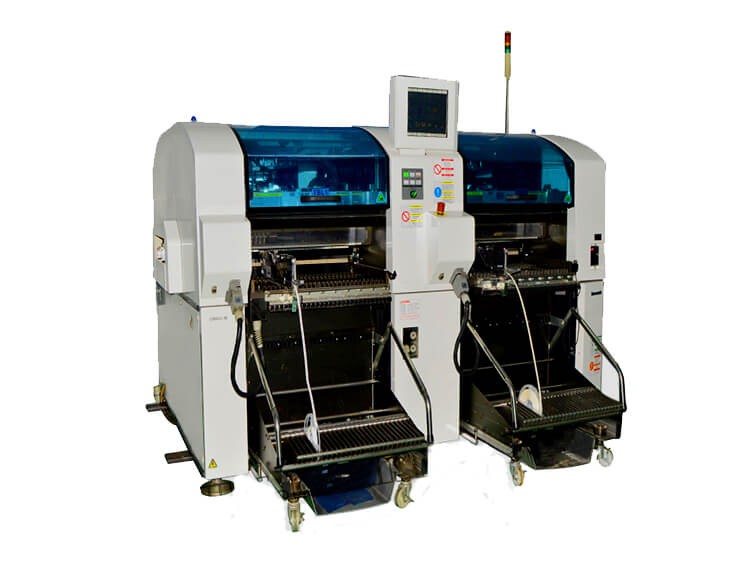

Panasonic CM402 Pick and Place Machine

Panasonic CM402 Pick and Place Machine
Mounting Speed: 60,000 CPH
Application components: from 0201 chips to 24mm square
216 feeder inputs

Panasonic CM402 Pick and Place Machine

Specifications:

Panasonic CM402 Pick and Place Machine

The CM402 is now available for purchase as a Panasonic Pre-Owned Certified machine. Please fill out the form to the right or call for inventory availability.

If you need the flexibility to switch from ultrahigh-speed placement to multi-functionality on site, the CM402 high-speed interchangeable platform, modular placement machine is the choice. With its high-speed head, it can place up to 60,000 components per hour with ±50 micron accuracy onto boards as large as 18" x 20". The multi-function head can place 17,140 CPH with ±35 micron accuracy.

Not only fast and flexible, the CM402 offers other economical benefits. Its user-friendly operation makes programming and operating the machine less labor intensive. Plus, by delivering fast, efficient product changeover, work stoppage is minimal. The CM402 was developed to allow customers to add incremental capacity as their production needs progress.

Features & Benefits

Supports wide range of chips, from 0201 chips to 24mm square components in high-speed mode and 0201 chips to 90mm X 100mm in multi-function mode

Up to 60,000 components per hour

216 feeder inputs (using 8mm dual)

Gang feeder exchange

Dual lane capability

Placement Rate

60000cph

Placement head

8

Mounting precision

±50um/chip

Element size (mm)

0603 chip~L24 X W24

Multifunction mounting head

3

Mounting speed

0.21s/chip

Mounting precision

±35um/QFP

Element size (mm)

0603chip~L100 X W90

Dimension

7120/5600/3950x2140x1750mm; 7520/5800/3950x2270x1750mm

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
