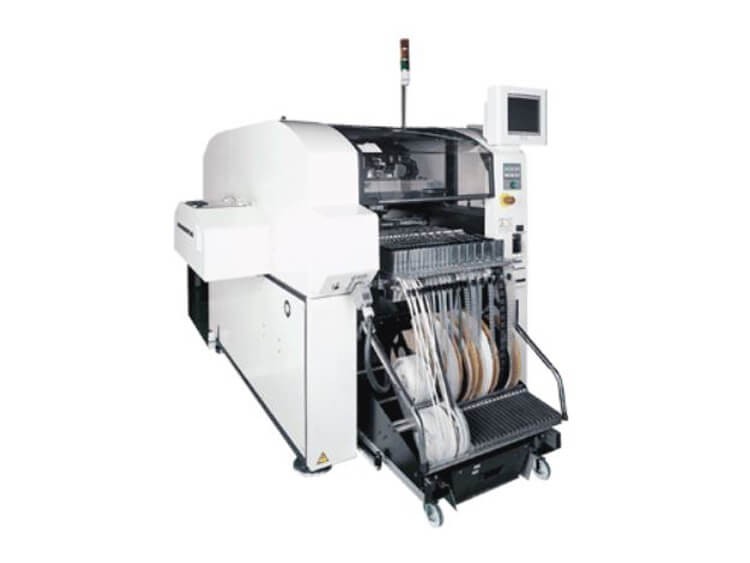

Panasonic DT401 Pick and Place Machine

Component Size: 1005 Chip
W1260 mm x D2512mm x H1430mm
Weight: 1400KG 1560KG

Panasonic DT401 Pick and Place Machine

Specifications:

Panasonic DT401 Pick and Place Machine

The Panasonic DT401 is a direct tray modular, multi-functional placement machine that's designed to give users the flexibility to place a large number of varied, odd-shaped components at high speeds. Direct placement head pickup allows for the wide component range, while tray feeder replenishment and a feeder collective-exchange cart delivers improved operation rates.

Can handle parts ranging from microchips to large parts such as BGAs, CSPs and connectors

The DT401 handles a broad spectrum of components including 0402 chips, BGAs, CSPs, connectors and other large components up to 100 mm X 90 mm @ 25mm thickness. To ensure such flexibility, the machine supports five kinds of tape feeders, equipped with variable feed pitch capabilities. The DT401 uses the same feeder table and feeders as our CM402, which results in cost-savings, reduction in feeder inventory, greater flexibility and interchangeability.

Load control head supplied as standard

The series of three load control heads yields a maximum load of 50 N which enables almost all insertion connectors to be mounted.

Features & Benefits

Direct pickup along with on-the-fly component replenishment and changeover allows high-speed production

Supports twin and single tray feeders

8 mm double tape feeders, as well as 12/16, 24/32, 44/56 and 72 mm tape feeders

Interchangeable platform

Handles up to 510 mm L x 460 mm W boards

Panasonic DT401-F multi-function placement machine Model Specifications

Panasonic multi - function placement machine DT401

Model Name: DT401-M DT401-F

Model: KXF-E53C KXF-E64C

Base size: L50mm x W50mm to L330mm x W250mm L50mm x W50mm to L510mm x W460mm

Placement tempo: 0.7s / chip (tape, bulk) 0.8s / QFP (single tray) 1.2s / QFP

Mounting accuracy: + - 50um / chip cpk> 1, + -35um / QFP () Cpk> 1

Component Size: 1005 Chip - L100mm x W90mm x T25mm

Change time: 2.0s 0.9s (substrate length 240mm x or less)

Power: three-phase AC200-400v, 1.7kVA

Air source: 0.49MPa, 150L / m (A.N.R)

Equipment dimensions: W1260 mm x D2512mm x H1430mm W1260 mm x D2722mm x H1430 mm

Weight: 1400KG 1560KG
