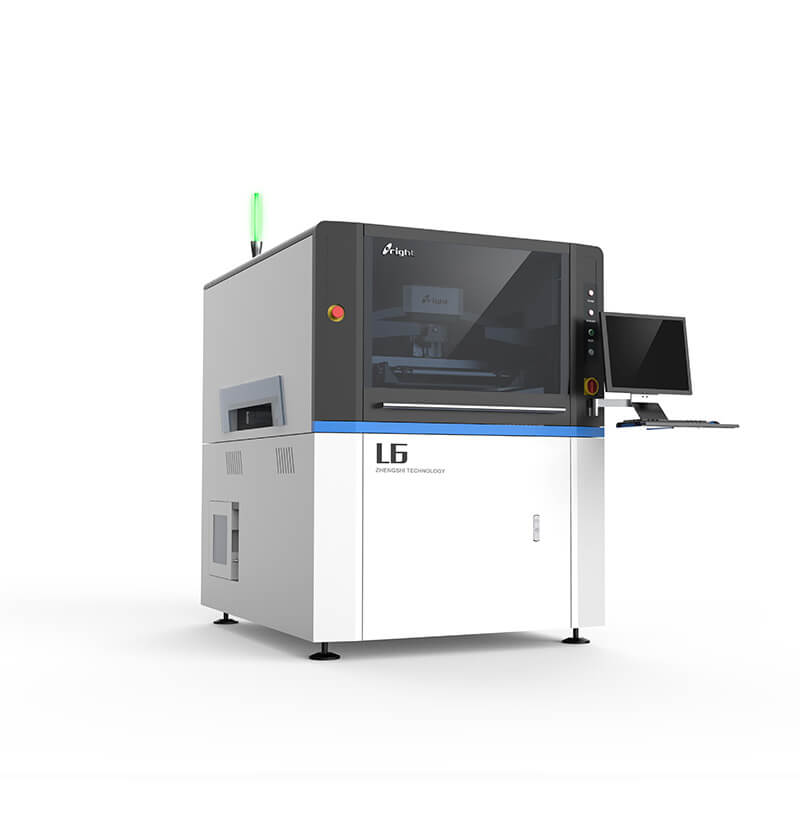

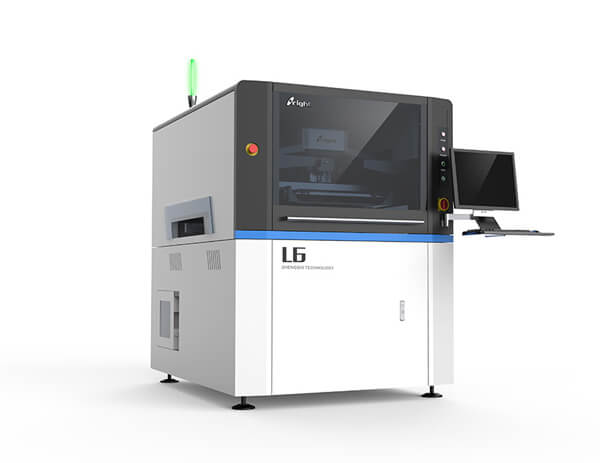

L6 SMT Stencil Printer

PCB Max Size 650X340mm
PCB Thickness 0.4~6mm
size: 1330(L)X1355(W)X1500(H)mm
Weight:1000Kg

L6 SMT Stencil Printer

Specifications:

L6 SMT Stencil Printer

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;

New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;

2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure

for a little while can back again. According to the product flexible use

3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.

4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy

5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;

6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;

Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item

Model

L6

Screen Frames

Min Size

650X400mm


Max Size

850X750mm


Thickness

25~40mm

PCB Min Size

50X50mm

PCB Max Size

650X340mm

PCB Thickness

0.4~6mm

PCB Warpage

<1%

Transport Height

900±40mm

Transport Speed

Max 1500mm/S Programmable

Board Location

Support System

Magnetic Pin/Up-down table adjusted/supportblock


Clamping System

side clamping,vacuum nozzle,

Print head

Two independent motorised printheads

Squeegee Speed

6~200mm/sec

Squeegee Pressure

0~15Kg

Squeegee Angle

60°/55°/45°

Squeegee Type

Stainless steel(Standard), plastic

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning System

Dry、Wet、Vacuum (Programmable)

Table Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine


Repeat Position Accuracy

±0.01mm

Printing Accuracy

±0.025mm

Cycle Time

<10s (Exclude Printing & Cleaning)

Product Changeover

<5Min

Air Required

4.5~6Kg/cm2

Power Input

AC:220±10%,50/60HZ 1Φ 3KW

Control Method

PC Control

Machine Dimensions

1330(L)X1355(W)X1500(H)mm

Machine Weight

Approx:1000Kg
