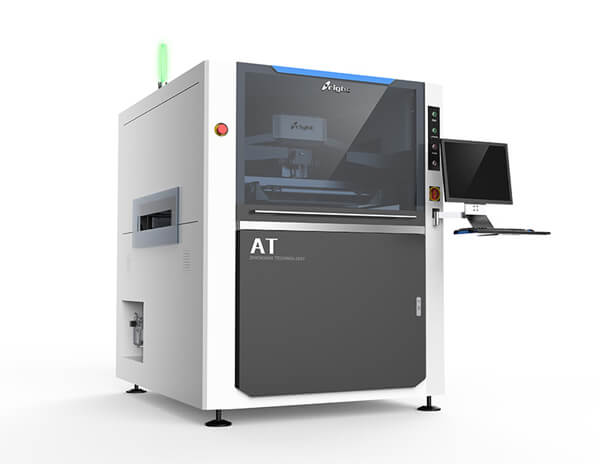

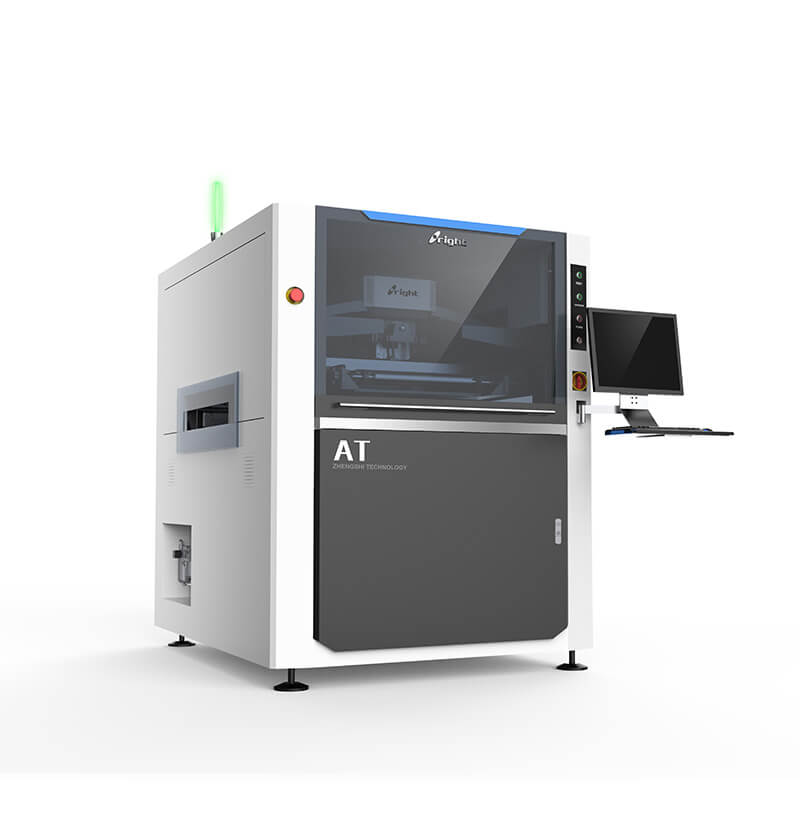

AT SMT Stencil Printer

PCB Max Size 510X510mm
PCB Thickness 0.4~6mm
size: 1220(L)X1530(W)X1500(H)mm
Weight:1200Kg

AT SMT Stencil Printer

Specifications:

AT SMT Stencil Printer

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

Specification :

A Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size:50mm x 50mm ~510mm x 510mm;

PCB thickness: 0.4mm ~ 6mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;

New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;

2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure

for a little while can back again. According to the product flexible use

3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.

4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy

5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;

6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;

Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item

Model

AT

Screen Frames

Min Size

470X370mm

Max Size

737X737mm

Thickness

25~40mm

PCB Min Size

50X50mm

PCB Max Size

510X510mm

PCB Thickness

0.4~6mm

PCB Warpage

<1%

Transport Height

900±40mm

Transport Direction

Left-Right;Right-Left;Left-Left;Right-Right

Transport Speed

Max 1500mm/S Programmable

Board Location
PCB

Support System

Magnetic Pin/Up-down table adjusted/supportblock
by hand Magnetic thimble / adjustable jacking platform / contour block

Clamping System

side clamping,vacuum nozzle,

Print head

Two independent motorised printheads

Squeegee Speed

6~200mm/sec

Squeegee Pressure

0~15Kg

Squeegee Angle

60°/55°/45°

Squeegee Type

Stainless steel(Standard), plastic

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning System

DryWetVacuum (Programmable)

Table Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine


Repeat Position Accuracy

±0.007mm

Printing Accuracy

±0.015mm

Cycle Time

<8s (Exclude Printing & Cleaning)

Product Changeover

<5Min

Air Required

4.5~6Kg/cm2

Power Input

AC:220±10%,50/60HZ 1Φ 3KW

Control Method

PC Control

Machine Dimensions

1220(L)X1530(W)X1500(H)mm

Machine Weight

Approx:1200Kg
