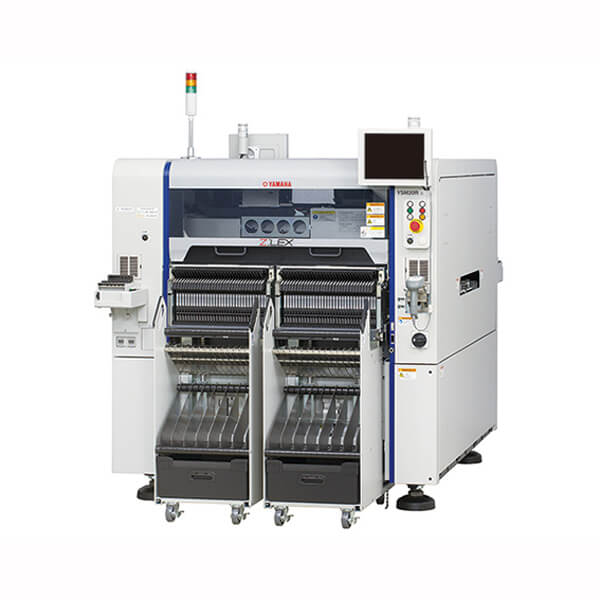

Yamaha Z LEX YSM20W Pick And Place Machine

Speed: 80,000 CPH
Applicable Components: 0201 to 45×45 mm
Size:L 1,374 x W 2,110 x H1,445mm
Weight:2500KG

Yamaha Z LEX YSM20W Pick And Place Machine

Specifications:

Yamaha Z LEX YSM20W Pick And Place Machine

Yamaha Z LEX YSM20W Pick And Place Machine that offers the versatility to accommodate a wide range of production formats with flexibility and efficiency while also boasting a mounting speed of 80,000 CPH, making it the world's fastest in its class (under optimum conditions).

The YSM20W, a leading Z:LEX Series model, offers high productivity, adaptability to various components and superior production changeover ability based on its “1-head solution” concept to accommodate a wide range of component sizes—from super small chips to large components—with a single type of head. The new YSM20W is a high-end, high-efficiency modular mounter that enhances the production capabilities of the YSM20W and joins the series lineup as a deluxe model aimed at boosting competitiveness.

With the YSM20W, Yamaha focused on increasing XY-axis speeds and revising the actions involved for pick-up to placement, and successfully improved mounting speed by approximately 5% compared to the YSM20. Also, by improving the performance of the wide-scan camera on the head, the YSM20W can mount components up to 12×12 mm in size (up from 8×8 mm) at high speed, thus improving productivity. Further, the new Auto Loading Feeder (ALF) using proprietary Yamaha Motor technology, the “sATS30NS” Auto Tray Sequencer (ATS) for nonstop tray replacement and nonstop feeder carriage exchange system (all available as options) reduce costs and time loss while further improving machine operation rate.

The Z:LEX YSM20R will be on display at the 47th Internepcon Japan electronics manufacturing and mounting technology exhibition to be held at the Tokyo Big Sight (Koto-ku, Tokyo) from January 17 to 19, 2018.

*1: Surface mounter: Manufacturing machine for mounting various electric/electronic components on the printed circuit boards (PCBs) used in electrical appliances and electronic devices.

*2: CPH (Chips Per Hour): Total number of chips that can be mounted per hour (unit time). Indicates processing capacity under various conditions.

*3: Components mounting speed (CPH) for a surface mounter with the 2-beam, 2-head layout under optimum conditions. Based on Yamaha Motor data as of January 2018.

Model

Yamaha YSM20R

Yamaha YSM20W

Applicable PCB

Dual stage 1 PCB conveyance : L810x4902 PCB conveyance : L380 x W490Single lane
L810 x W490

Dual lane :L810 x W230

Single lane:L810 x W742

Dual laneL810 x W356

Mounting capability

X axis 2-beam : High-speed multi-purpose head x 2: 90,000CPH

X axis 2-beam : High-speed multi-purpose
 head x 2
: 80,000CPH

Mounting accuracy

+/-0.035mm (+/-0.025mm) Cpk≧1.0 (3σ)

Applicable components

High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less
Note : Multi-camera (option) may be needed in some cases due to part height and part size.
Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm, Height 28mm or less

Number of component types

Fixed plate : Max.140 types (conversion for 8mm tape feeder)
Feeder carriage exchange : Max.128 types (conversion for 8mm tape feeder)
Trays for 30 types (fixed) and 10 types (carriage)

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source

0.45MPa or more, in clean, dry state

External dimension (excluding projections)

L 1,374 x W 1,857 x H1,445mm

L 1,374 x W 2,110 x H1,445mm

Weight

Approx. 2,050 kg

Approx. 2,500 kg
