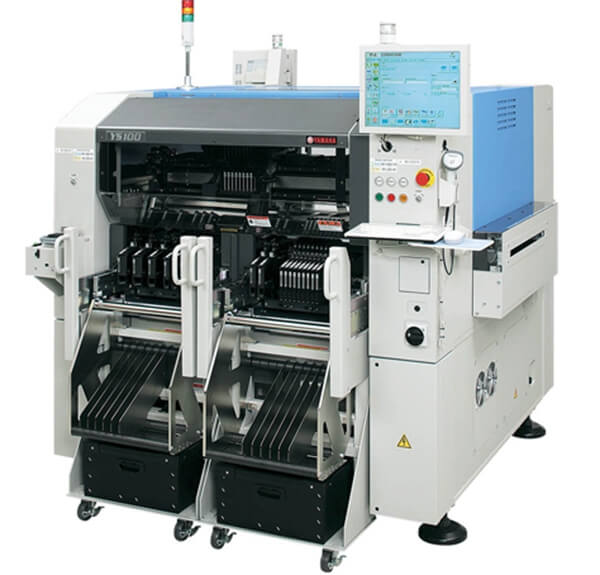

Yamaha YS100 Pick and Place Machine

Patch speed 25,000CPH
components range: 0402 - W45xL100mm
Capable 15mm height components

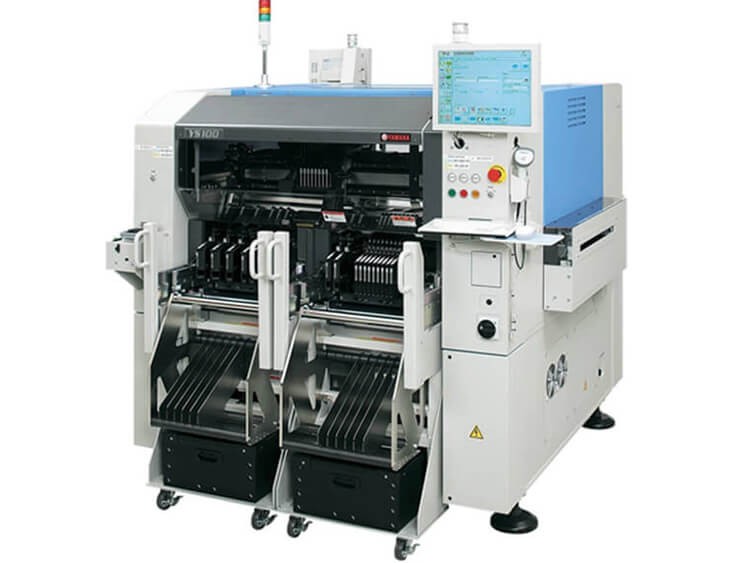

Yamaha YS100 Pick and Place Machine

Specifications:

Yamaha YS100 Pick and Place Machine

Main benefits

The standard YS100 comes with software and hardware features to improve product quality, increase production efficiency, shorten NPI and changeover times and reduces maintenance, including:

Intelligent electrical feeders

Z-Servo controlled placement heads for accurate stress-free component mounting

Automatic board width and thickness adjustment for fast changeover

Automatic nozzle cleaning station

Automatic temperature feedback to compensate for temperature variations

Fiducial recovery function that eliminates the need to remove and clean the PCB

Feeder indicators that facilitate easy setup and reduce feeder setup

Double board support system for reducing board transfer time

Tape cutters

High-speed mounting capacity handling

25,000CPH(0.14sec/CHIP Equivalent : optimum condition)

+/-50μm(CHIP),

+/-30μm(QFP)mounting

absolute accuracy in full time operation

Handles a wide range of components from 0402 chips to W45xL100mm or less components and with long connectors

Capable of handling 15mm height components

Applicable to large size PCB(L510mm x W460mm)

Built-in tape cutter available as an option

Conformity with both Machinery directive and EMC directive

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
