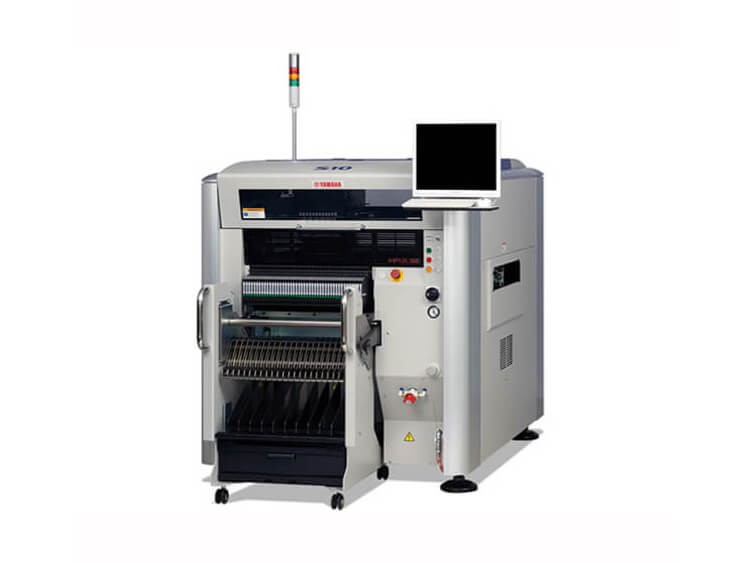

Yamaha S10 Pick and Place Machine

Speed: 45,000 CPH
Applicable PCB: L1,330 x W510mm
Weight:1200KG
Dimension: L1250xD1750xH1420mm

Yamaha S10 Pick and Place Machine

Specifications:

Yamaha S10 Pick and Place Machine

Ultimate Flexibility to realize 3D MID* Placement

· Enhancement to 3D MID

· Large board handling capability

· Wide ranging component handling capability and high feeder capacity

· Ultimate flexibility and fast & easy setup

3D MID: Molded Interconnect Device

Model

S10

Board size(with buffer unused)

Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955)

Board size(with input or output buffer used)

Min. L50 x W30mm to Max. L420 x W510mm

Board size(with input and output buffers used)

Min. L50 x W30mm to Max. L330 x W510mm

Board thickness

0.4 - 4.8mm

Board flow direction

Left to right (Std)

Board transfer speed

Max 900mm/sec

Placement speed (12 heads + 2 theta) Opt. Cond.

0.08sec/CHIP (45,000CPH)

Placement accuracy A (+3)

CHIP +/-0.040mm

Placement accuracy B (+3)

IC +/-0.025mm

Placement angle

+/-180 degrees

Z axis control / Theta axis control

AC servo motor

Component height

Max 30mm*1 (Pre-placed components: max 25mm)

Applicable components

0201 (mm) – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)

Component package

8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray

Drawback check

Vacuum check and vision check

Screen language

English, Chinese, Korean, Japanese

Board positioning

Board grip unit, front reference, auto conveyor width adjustment

Component types

Max 90 types (8mm tape), 45 lanes x 2

Transfer height

900 +/- 20mm

Machine dimensions, weight

L1250xD1750xH1420mm, Approx. 1,200kg

*1 Board thickness + Component height = Max 30mm

Specifications and appearance are subject to change without prior notice.
