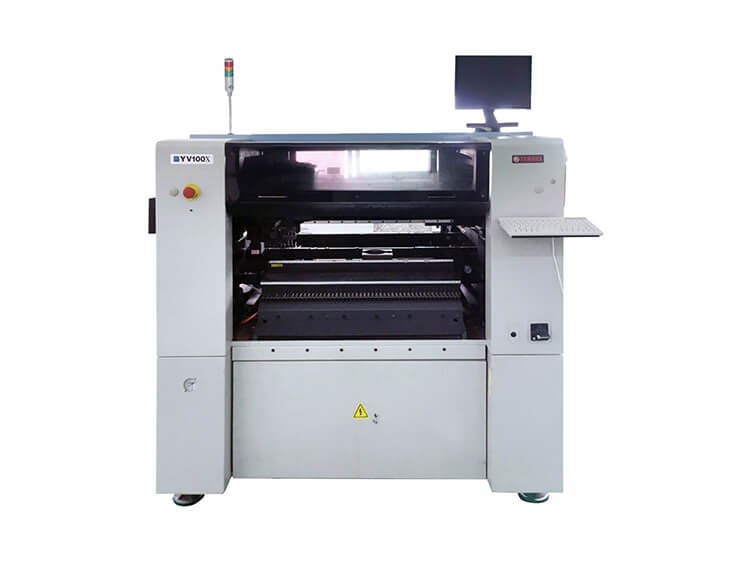

YAMAHA YV100X Pick and Place Machine

Patch speed 18000CPH

YAMAHA YV100X Pick and Place Machine


YAMAHA YV100X Pick and Place Machine

Menu is relatively simple, easy to operate, can be easily modified stickers 1.2 m long LED light board.

Theory of 18000 points per hour. The actual production speed of about 9000 points per hour,suitable for small and medium batch production and with high-speed placement machine.

MC Type

Samsung YV100X Chip Mounter

PCB size

L460 x W445mm (Max.), L50 x W50mm (Min.)or L460 x W335mm

Accuracy  +-0.1mm(Chips)  +-0.08mm(QFP)

Mounting Speed



Mounting angle

+-180°, per0.01°

Space for cassettes

100 of 8mmTape,

and 80 trays with YTF. (Option)

Available feeders

8-56mmTapes, Sticks, Bulks, Trays

Available Components

From 0.6mmX0.3mm to 32mmX100mm,

Maximum component height 6.5mm

Maximum mounting data

10000 mounting line/ 1 production data,

Maximum 500 production data in the hard disk.

Machine size: L1,655XW1,408XH1,850mm

Machine weight:1,450kg
