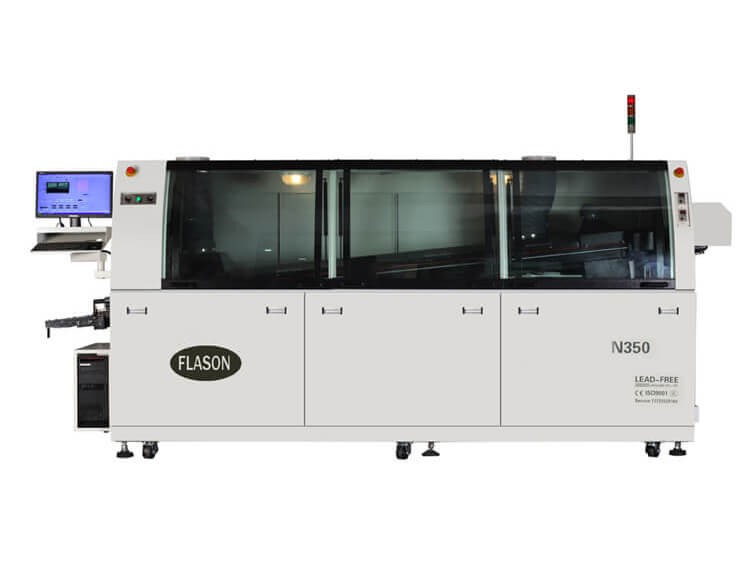

Wave Soldering Machine N350
Specifications:
wave soldering Equipment is used for soldering THT insertion components to PCB. It's automatic soldering, so reduced the human working cost. Nowsdays still widely used in PCB production feild.
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environmental protection and safety,
easy to clean.
8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
10.With black box memory function, the machine can always store the production management records, improve work efficiency.
11.Automatic claw cleaning function ensure the cleanliness of claws.
12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.
Model No.
Flason N350
Number of pre-heaters
3
Pre-heater passage
1600mm
Body size
3300(L)*1400(W)*1560(H)
Outside dimension
4100(L)*1400(W)*1560(H)
Weight
1100KG
Total/steady consumption
24KW/6-8KW
Air supply
0.5MPa
Preheating style
Hot air
Preheater consumption
220V 8KW
Control method
PC +PLC
Range of temp. set-point
Room temperature---300ºC
Preheating time
About 10-15mins for setting 150ºC
Solder application
Lead-free
Solder pot capacity
320KG
Solder pot temperature
300ºC
Solder pot consumption
380V 12KW
Solder temp. control method
PID&SSR
Wave motor consumption
1KW 220V
Solder melting
About 120mins for setting 250ºC
PCB width
50-350mm
Conveyor speed
300-2000mm/min
Conveyor direction
L-R (R-L optional)
Conveyor inclination
4-7 º
Flux pressure/capacity
3-5 bar/6.5L
