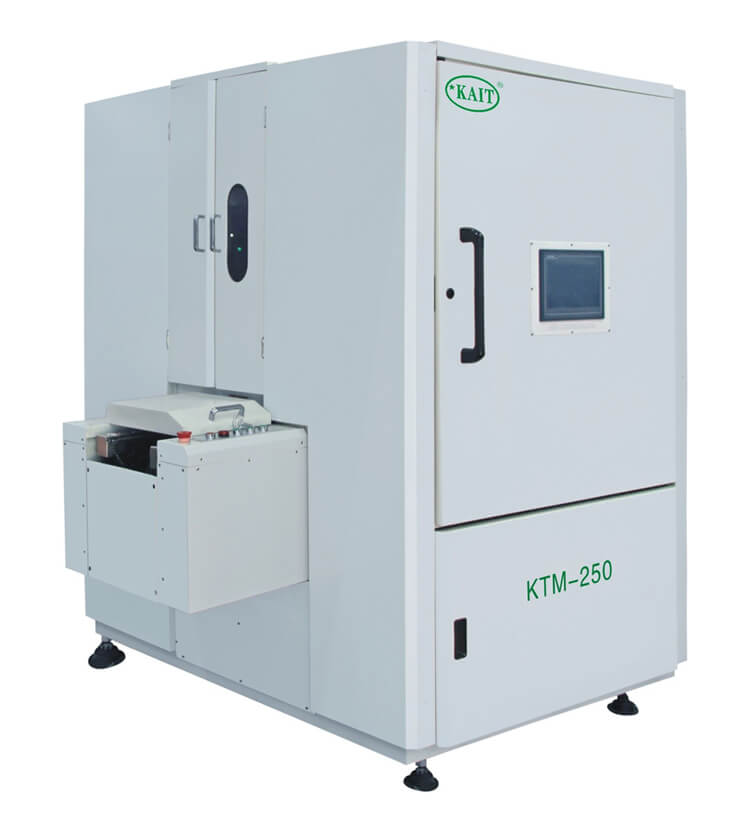

Vertical Curing Oven KTM-250

Heating zone: Top ​2, bottom 2
PCB width: 100*100-250*500mm
Weight 1500KG
Dimension 2600*1570*2025mm

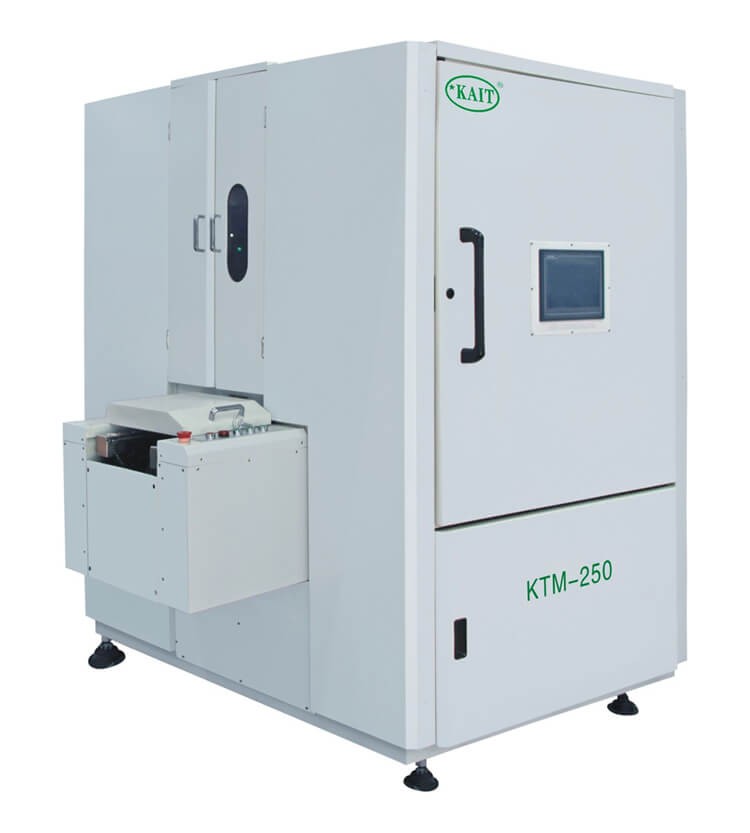

Vertical Curing Oven KTM-250

Specifications:

Vertical Curing Oven KTM-250

This one machine Production ability equals to 30 meter UV glue Red glue curing oven.

Features:

General spec.

Dimension

2600*1570*2025mmL*W*H

Weight

1500KG

Heating zone qty

Top 2, bottom 2

Direction

Left to right, up to bottom

Power

3P 380V50/60HZ

Total power

26.4KW

Running power

18KW

Conveyor

PCB width

100*100-250*500mm

PCB thickness

2*5mmpallet:5*45mm

PCB bending rate

Up& bottom   ≤1.0mm

Conveying height

900±50mm

Gap height

≥50.8mm

Stocking PCB qty

Top:32 layersbottom:32 layers

Conveying method

Support strip

Distance

25.4mm

Conveying speed

0-2000mm/min adjustable

Bearable weight

6KG/layer

Property

Heating modular

4pcs

Heating time

15min

Oven surface temp.

≤65°Cunder room temp

Controllable temp

Indoor 200°C

Heating compensation temp

±3°C

Control accuracy

±3°C

Software

Control method

Touch screen+ PLC / industrial computer+ PLC

Data monitor

Computer data record and enquiry

Authorization

Can be set

Safety

In accord to national standard

Yes

Abnormal temp. stop

Signal of PCB enter and exit, trigger device

Heat radiation system

Yes

Protection device

Safe guardrailemergency stopsafe marks

Safe device

Open the safety door to alarm and automatically shift to temp. dropping mode

Over temp. protection device

Heating stops, PCB inside come out

Fire-proof level

B1/A

Service

Warranty

2 years

Scene training

Yes

Technique support

8 hours

Intelligent terminal

Available

Software upgrade

Free of charge
