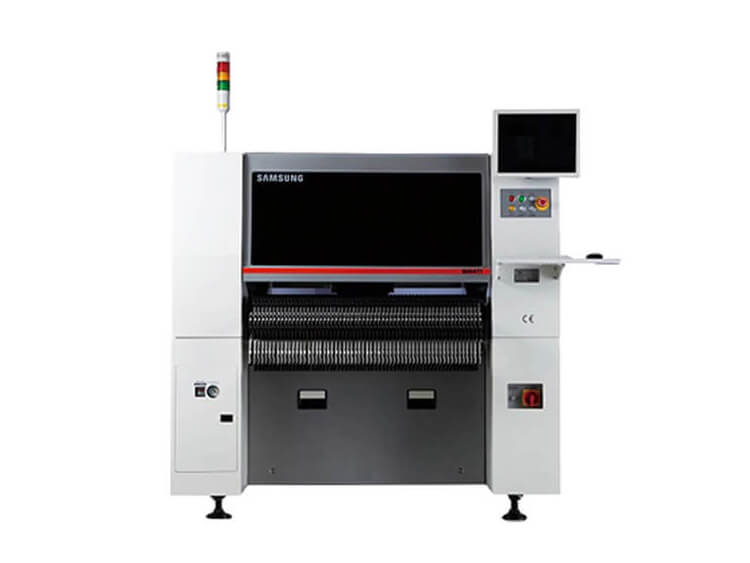

Samsung SM481 Pick and Place Machine

PCB size 460 (L) * 400 (W)
Chip theoretical speed 39,000CPH
1650 X 1680 X 1530MM
weight 1655KG

Samsung SM481 Pick and Place Machine

Specifications:

Samsung SM481 Pick and Place Machine

As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 38,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.

In addition, it is applicable up to 0402 chips and □42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.

SM481 parameters

Focus on the way flight vision + fixed vision (optional)

Number of axes 10 axes * 1 gantry

Mounting Speed 0603 39000 (Best Conditions)

Mounting accuracy chip ± 50um @ 3ó / chip

QFP ± 30um @ 3ó / chip

Component Range Flight Vision 0402- □ 16mmIC BGA CSP Ball Spacing 0.4

Standard Fixed Vision (FOV35) - □ 16mmIC (pitch 0.3mm)

- □ 32mm IC BGA CSP Ball Spacing 0.5

Standard Fixed Vision (FOV45) - □ 32mmIC (Pitch 0.4mm)

Focus on the way flight vision + fixed vision (optional)

Number of axes 10 axes * 1 gantry

Mounting Speed 0603 39000 (Best Conditions)

Mounting accuracy chip ± 50um @ 3ó / chip QFP ± 30um @ 3ó / chip

Component Range Flight Vision 0402- □ 16mmIC BGA CSP Ball Spacing 0.4

Standard Fixed Vision (FOV35) - □ 16mmIC (pitch 0.3mm)

- □ 32mm IC BGA CSP Ball Spacing 0.5

Standard Fixed Vision (FOV45) - □ 32mmIC (Pitch 0.4mm)

- □ 42mm BGA CSP ball pitch 1.0

Maximum height 10mm (option: 15mm)

PCB Size cm Min 5 x 4 Max 46 X 40 51 x 46 Options 61 X 51 Options 74 X 46 Options

PCB thickness 0.38-4.2mm

The number of feeders 120

Energy consumption Power consumption AC200 / 208/220/240/380 (50 / 60HZ)

Maximum 5KV Air consumption 0.5-0.7M ** (5.1-7.1kgf / c㎡

260Ne / min Weight (kg) 1655

Machine Size (M) 1.65 X 1.68 X 1.53
