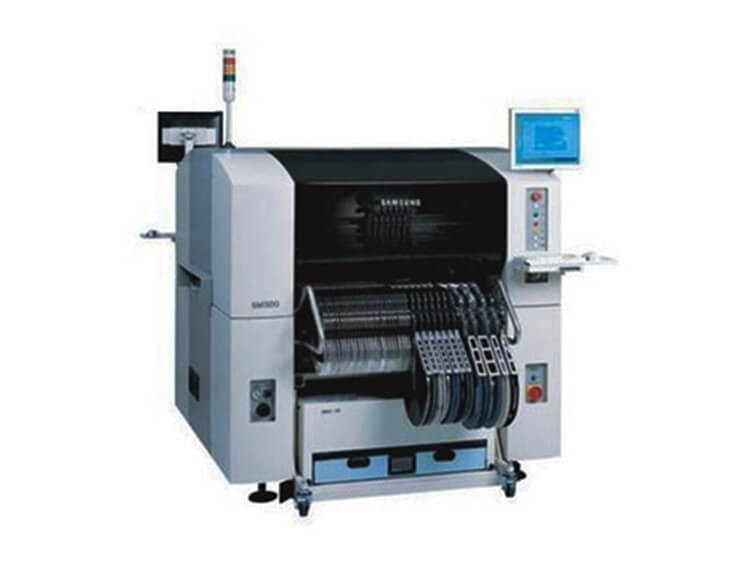

Samsung SM320 Pick and Place Machine

Mounting range 0402mm Chip ~ 55mm IC
Chip theoretical speed :18500CPH
PCB size 510 * 460mm
120ea / 112ea (docking cart)

Samsung SM320 Pick and Place Machine

Specifications:

Samsung SM320 Pick and Place Machine

Full Vision Mounter 19k cph

Vintage 2005

Fully Overhauled & Re-Painted

Large PCB Size 610mm x 400mm

01005 ~ 22mm Square by Flying Vision Alignment (01005 Camera as option)

0.4mm Lead pitch @ 32mm Square using Vision Alignment

0.3mm Lead pitch camera included

BGA/CSP/uBGA by Vision Alignment

Feeder Capacity up to 120 x 8mm Feeders

IPC rated speed of 18'500cph (IPC9850 1608Chip)

Full set of nozzles to cover all component types

Large Component Library as Standard withmore than 1'800 component types

CAD Import facility as standard

Robust & Highly reliable Machine, fully supported by Elite 7 Installations Ltd.

Chip theoretical speed :18500CPH
Mounting range 0402mm Chip ~  55mm IC
Placement accuracy plus or minus 0.03mm
PCB size 510 * 460-460 * 400mm
Equipment size 50 x 40 mm ~ 460 x 400mm

Component identification method

FLYING VISION + STAGE VISION
Mounting efficiency
Flight camera recognition system
CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system
1.4 SEC / QFP208 (TRAY SUPPLY STANDARD)

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
