Cleaning basket size L610 x W560 x H100 (mm)
Detergent tank 60L
Dry time 10~30min
Machine weight 400KG

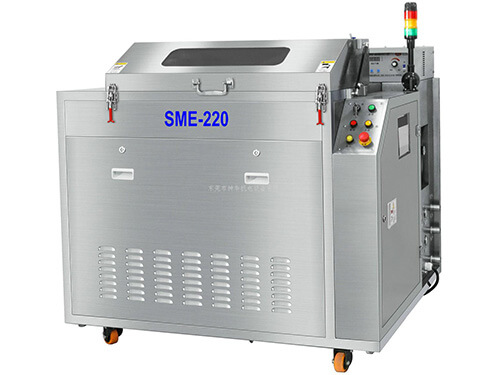

SME-2200 is an off-line, compact, energy-saving and environmental protection, batch cleaning SMT Squeegee and mis print PCB cleaning machine. SME-2200 can automatically complete the cleaning, rinsing, drying process in one chamber by just push” start” key.
SME-2200 squeegee cleaning machine can effectively clean solder paste and other organic and inorganic residuals on it. SME-2200 also can be used to clean mis print PCB and PCBA.
1.Special designed to clean solder paste ,flux and other organic and inorganic contaminations on Squeegees or mis print PCB.
2.Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.
3.2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.
4.State of the process is visible through a large observation window.
5.Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
6.Easy operation interface, quick setting clean parameters. Different passwords can be set.
7.Inner filter makes detergent used repeated. Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.
8.The remaining detergent in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
9.Totally SUS304 structure, very firm and attractive.
10.Connect with DI water machine to clean high requirement products.
Cleaning basket size
L610 x W560 x H100 (mm)
Spray detergent tank
Detergent heat temp
Cleaning detergent filter
Rinse detergent filter
L1300 x W1200 x H1850(mm)
