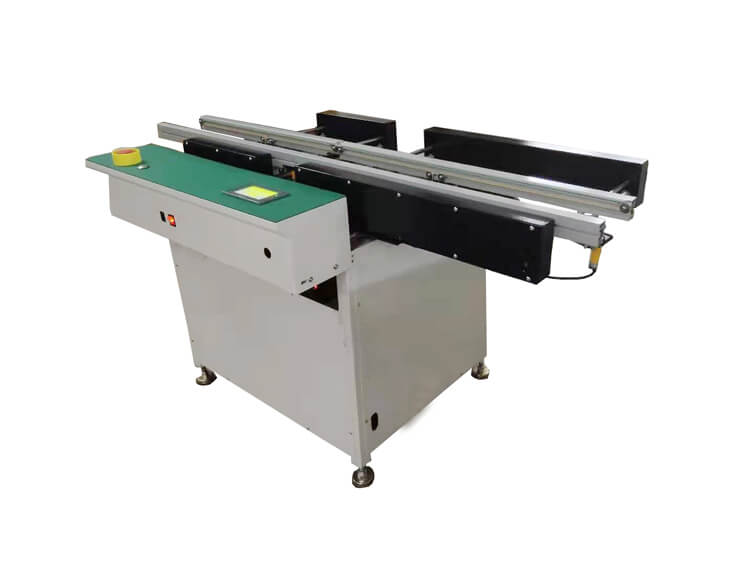

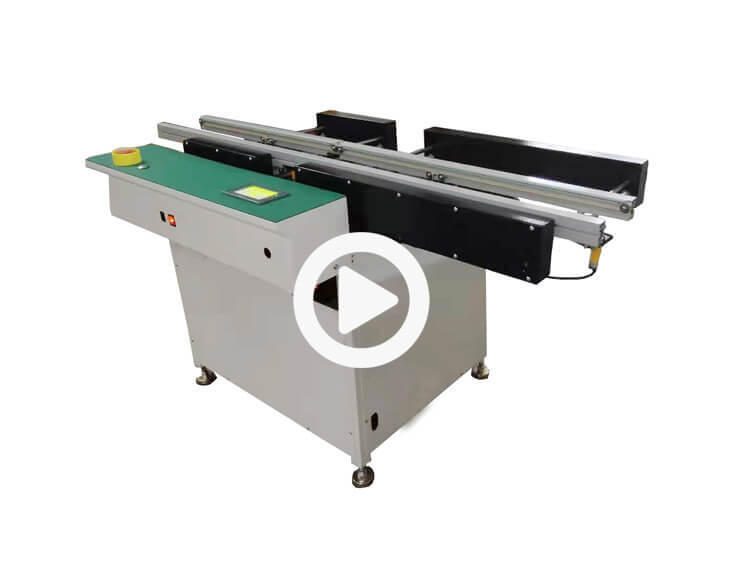

SMT Retractable Conveyor

  • Expansion Size 580mm
  • PCB Width: 50 to 350 mm
  • Outline dimensions 1500*750*900mm
  • Weight 150KG
  • Product description: SMT Retractable Conveyor, Expansion Size: 580mm, PCB Width: 50 to 350 mm, Outline dimensions: 1500*750*900mm, Weight 150KG
  • INQUIRY

SMT Retractable Conveyor

Specifications:

1.The width adjustment of standard precision screw rods easy adjustment width

2.Professional wear-resistant anti-static flat belt and dedicated aluminum profile guide rail are used to ensure smooth connection and stable transportation;

3.The standard equipped signal cable(SMEMA) can be connected online with other equipment

4.Retractable Conveyor with different rail lengths can be customized according to customer requirements

5.The work surface is equipped with anti-static rubber to better prevent static electricity;

6.The transmission motor uses two 42 * 48 stepper motors

Technical parameters

Model

Retractable Conveyor

Outline dimensions

1500*750*900mm

PCB width

50-350mm

Transport height

900±20mm

PCB transport direction

L-R(R-L)

PCB transport Speed

0~3000mm

Expansion Size

580mm

Expansion Control

PLC Control

Motor

Stepper motor

Expansion method

Two key conrol

Power supply

AC220V1P 50/60Hz

Power consumption

Approx.100W

Track length

580mm

Control mode

PLC+touch screen

Weight

150KG

SMEMA

Dual line wire

Single lane

1 fixed2nd moving

Keywords:

SMT Peripheral Equipment, PCB Loader, PCB Unloader, SMT PCB Conveyor, SMT PCB Cleaning Machine, DIP Insert Line, SMT NG/OK Unloader, SMT Shuttle Conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
