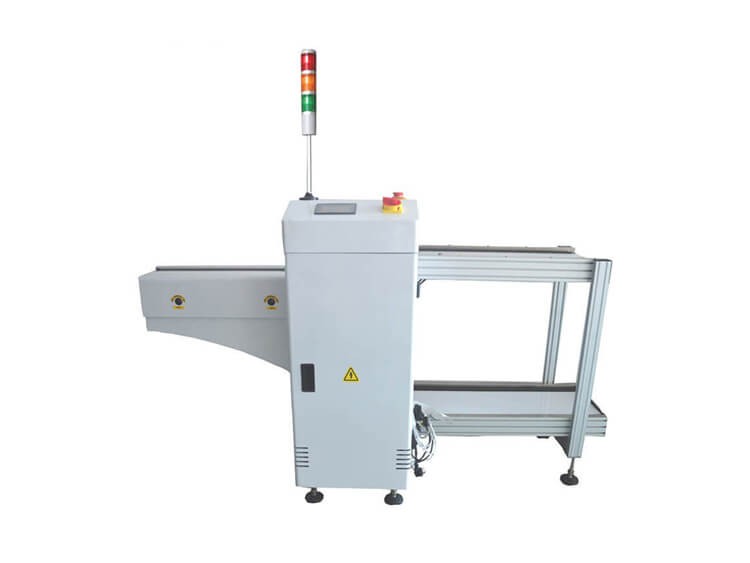

SMT PCB Unloader UNL330

SMT PCB Unloader UNL330

Specifications:

SMT PCB Unloader UNL330

1)Machine Size(L*W*H):L1790*W680*H11650mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)330*(W)250mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box

Item	Product	Describtion
1	Auto SMT Unloader	1 Dimension:1790(L)×680(W)×1650(H)mm
		2 Special aluminum guide rail and special chain;
		3 90WSPG Brake motor drive the ball screw,Make Magazine lift;
		4 Pneumatic clamping structure
		5 Magazine Size :535x460x565mm
		6 PCB Size :60(W)×60(L)mm--330x250mm
		7 Direction: R-L or L-R;
		8 Lift platform pitch selection:10 20 30 40 50
		9 Siemens PLC control system;
		10 auto upper function;
		11 Control panel is touch screen;
		12 Power :0.25KW
		13 Power supply 220V 50HZ
		14 Air Supply 4-6MPa
