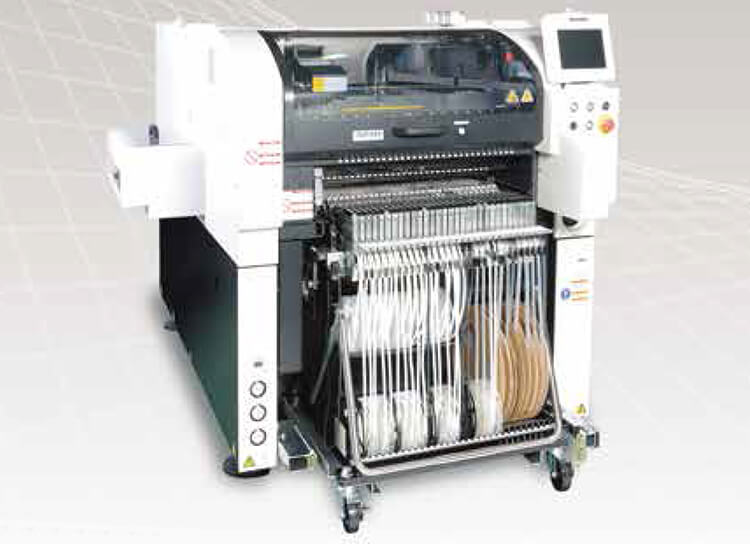

Panasonic NPM W2S Pick and Place Machine

Max PCB: L 750 x W 550
Placing Speed: 75000CPH
Max Feeder: 120 reels
Weight: 2390 kg

Panasonic NPM W2S Pick and Place Machine

Specifications:

Directly connectable to NPM-W2

Support for single-/dual-lane transport

Selection of the mounting head according to production form

Selectable from Lightweight16-/12-/Lightweight8-/3-nozzle head V2

Mutual compatibility with NPM series

Shared use of the placement head/nozzle, tape feeder and feeder cart

*For details, contact our sales representative.

Adoption of 3-nozzle head V2

Capable of a max placement load of 100N.

Panasonic NPM W2S Pick and Place Machine

Model ID

NPM-W2S

PCB
dimensions
(mm)

Single-lane*1

Batch
mounting

L 50 x W 50 ~ L 750 x W 550

2-positin
mounting

L 50 x W 50 ~ L 350 x W 550

Dual-lane*1

Dual transfer (Batch)

L 50 × W 50 ~ L 750 × W 260

Dual transfer (2-positin)

L 50 × W 50 ~ L 350 × W 260

Single transfer (Batch)

L 50 × W 50 ~ L 750 × W 510

Single transfer (2-positin)

L 50 × W 50 ~ L 350 × W 510

Electric source

3-phase AC 200, 220, 380, 400, 420, 480 V  2.0 kVA

Pneumatic source

0.5 MPa, 200 L /min (A.N.R.)

Dimensions *2 (mm)

W 1 280 *3 × D 2 477 *4 × H 1 444 *5

Mass

2 390 kg (Only for main body:This differs depending on the option configuration.)



Placement head

Lightweight 16-nozzle head

12-nozzle head

Lightweight 8-nozzle head

3-nozzle head V2

Max. speed

38 500cph
(0.094 s/ chip)

32 250cph
(0.112 s/chip)

20 800cph
(0.173 s/ chip)

8 320cph
(0.433 s/ chip)
6 500cph
(0.554 s/ QFP)

Placement accuracy
(Cpk1)

±30 μm / chip
(±25μm / chip *6)

±30 μm / chip

± 30 µm/chip
± 30 µm/QFP
12mm
to 32mm
± 50 µm/QFP
12mm Under

± 30 µm/QFP

Component
dimensions
(mm)

03015*7 *8/0402*7 chip ~ L 6 x W 6 x T 3

0402*7 chip ~ L 12 x W 12 x T 6.5

0402*7 chip ~ L 32 x W 32 x T 12

0603 chip to L 150 x W 25 (diagonal152) x T 30

Component
supply

Taping

Tape : 4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm

Tape : 4 to 56 mm

Tape : 4 to 56 / 72 / 88 / 104 mm

Max.120 (Tape: 4, 8 mm, Small real)

Front/rear feeder cart specifications : Max.120
( Tape width and feeder are subject to the conditions on the left)
Single tray specifications : Max.86
( Tape width and feeder are subject to the conditions on the left)
Twin tray specifications : Max.60
( Tape width and feeder are subject to the conditions on the left)

Stick

-

Front/rear feeder cart specifications :
Max.15 (Single stick feeder)
Single tray specifications :
Max.15 (Single stick feeder)
Twin tray specifications :
Max.15 (Single stick feeder)

Tray

-

Single tray specifications : Max.20
Twin tray specifications : Max.40

*1 : Please consult us separately should you connect it to NPM-D3/D2/D. It cannot be connected to NPM-TT and NPM.
*2 : Only for main body
*3 : 1 880 mm in width if extension conveyors (300 mm) are placed on both sides.
*4 : Dimension D including tray feeder : 2 618 mm
Dimension D including feeder cart : 2 513 mm
*5 : Excluding the monitor, signal tower and ceiling fan cover.
*6 : ±25 μm placement support option. (Under conditions specified by PSFS)
*7 : The 03015/0402 chip requires a specific nozzle/feeder.
*8 : Support for 03015 mm chip placement is optional.
(Under conditions specified by PSFS,Placement accuracy : ±30 μm/ chip)
*Placement tact time,inspection time and accuracy values may differ slightly depending on conditions
*Please refer to the specification booklet for details.
