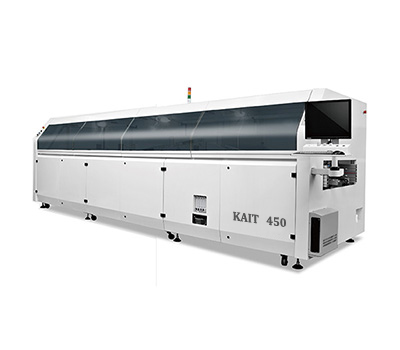

Nitrogen Wave Soldering Machine KTN-450

Nitrogen Soldering Process
Solder pot capacity 480kg
Weight Approx.2500kg
Dimension: 5500*1600*1730mm

Nitrogen Wave Soldering Machine KTN-450

Specifications:

Nitrogen Wave Soldering Machine KTN-450

Infrared heating method, by this method, the air won't flow, It can keep high level nitrogen level in soldering part. easy to reach oxygen less than 30-50 PPM. High nitrogen level make the solder clean and very few dross nearly no, and for the PCB surface it's very clean, no dross on the surface, so PCB no need cleaning , no need cleaning machine, save many cost for cleaning. High nitrogen level also make the solder more few empty holes inside the solder.

Model

KTN-450

Solder pot type

4th adjustable

PCB width

Max.50~350mm by Frame

Heating technology

Matrix straight heating, heating efficiency up to 95%

PCB convey height

750±50mm

Solder pot temp.

Room temp. to 350℃,accuracy±1-2℃

Conveyor speed

0-1800mmMin

Solder pot temp. accuracy

±1℃

Angle

3~7 degree

Finger types

Strong titanium finger /customized

Component height limit

Max.100mm

Solder bar adding way

Manually

Wave height range

0~18mm keep steady

Temp. control

P.I.D +SSR

Wave quantity

2

Machine control

PLC+PC

Preheating length

1800mm

Width adjust

Manually/motorized

Preheating zone

4 zones

Flux adding way

Automatic

Conveyor direction

Left to right

Flux flow rate

10~100ml/min

Preheat power

10KW

Spray method

Step motor+ ST-6 nozzle

Preheat temp.

Room temp. to 250℃ (adjustable)

Flux recycle

Tray to collect

Heating model

Infrare Tube

Electricity

3P 5 wires 380V/3P 220V

Solder bar type

Lead-free

Total power

Max.22kw

Solder pot power

14kw

Normal running power

Approx.3-5kw

Solder pot capacity

Approx.480kg

Air supply

4~7KG/CM2

Solder pot material

Cast iron

Dimension

5500*1600*1730mm

Weight

Approx.2500kg
