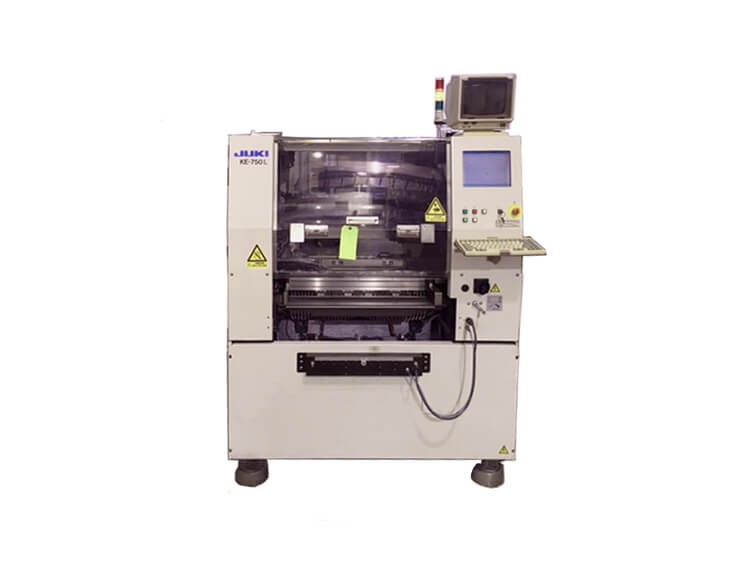

JUKI KE750 Pick and Place Machine

JUKI KE750 Pick and Place Machine

Specifications:

JUKI KE750 Pick and Place Machine

JUKI750 Placement machine is a medium-sized multi-function placement machine,

generally 1998-2000 equipment. Three heads, laser alignment, accuracy 0.08MM.

As an economical device, 750 Mounter low risk, medium speed, and more Function, low cost.

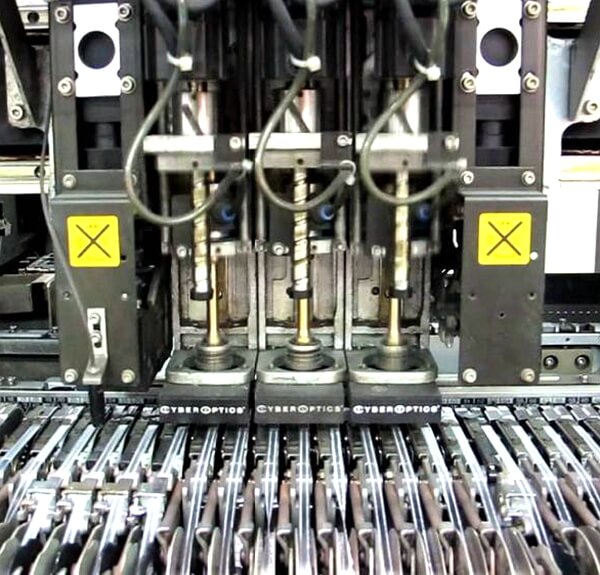

JUKI 750 placement head: 3

JUKI750 expected station: 80

Placement speed: 0.25sec / chip (3 at the same time attached to the attached)

JUKI750 placement accuracy: ± 0.1mm chip ± 0.09mm QFP (Laser)

Placement range: 1005 ~ 23.5mm (By Laser)

JUKI750 PCB size:

Maximum: 330 * 250mm

Min: 50 * 30mm

PCB thickness: 0.4 ~ 4mm

JUKI mid-speed placement machine 750

automatic / manual: automatic

Patch speed: 8000 (grain / hour)

PCB Dimensions:

L: 50.0 mm (min) -330.0 mm (max), W: 30.0 mm (min) -250.0 mm (max).

PCB thickness:: 0.40mm (min) -4mm (max)

Technical Parameters:

Component placement range:

0402-48mm * 48mm (chip, sot, sop, melf, QFP, connector, sop, plcc)

Component height: 0.3mm-10.5mm.

Pin spacing (Min): 0.4mm.

Component Dimensions: 0.5mm * 1.0mm (Min), 23.5mm * 23.5mm (Max).

Nozzle Model: 10X, 20X.

Mounting accuracy: ± 0.1mm (LA), ± 0.04mm (LAIC)

Mounting Speed (Max): 11,250 components / hour

speed:0.25s 3 heads

laser collection accuracy:0.08mm

angle accuracy :0.001 degree.

thickness of PCB: 0.4mm~4mm

component size: 1.0*1.0*0.5MM~32MM*11MM.QFP 20MM*20MM. for bigger size optional

power supply: single phase

power: 2KW

JUKI750 appearance size: 1400 * 1440 * 1460 (including lights 2000mm)

Weight: 1100KG
