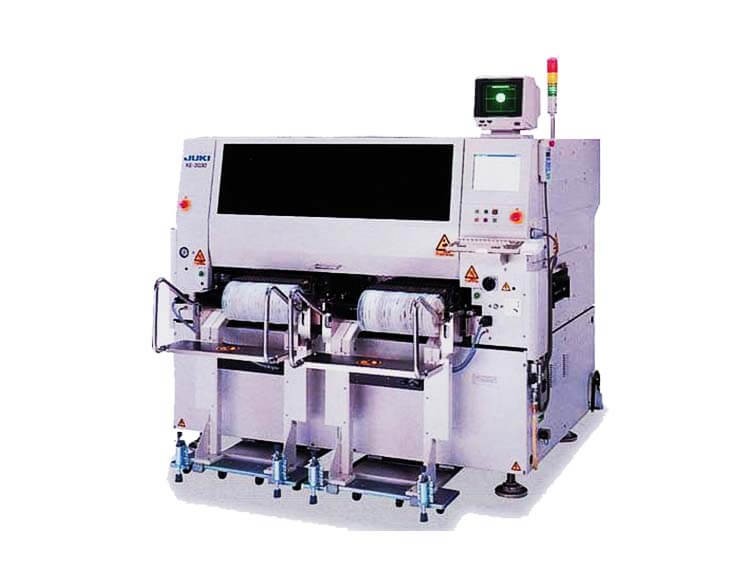

JUKI KE-2030 Pick and Place Machine

Applicable Components: 0603
Board size:330mmX250mm
Feeder inputs:120
placement capacity:20000CPH

JUKI KE-2030 Pick and Place Machine

Specifications:

JUKI KE-2030 Pick and Place Machine

JUKI 2030 is 20000CPH can achieve high-speed performance "double-chip high-speed placement machine."

Not only can be used around 2 patch head to mount two substrates at the same time,

but also to achieve the same type of mounting the highest efficiency,

The equivalent of two JUKI 2010.

1) PCB size: 330mmX250mm

2) Can be attached to the component range: 0402,0603 chip -26.5X11mm or 20mm square components

3) The number of stations: 60 x 2

4) theoretical chip speed: 20000 (grain / hour)

5) Mounting accuracy: Laser identification ± 0.08mm

6) Size and weight: L1900 / W1476 / H2000 & 6000KG

7) Weight 1400 (kg)

Power three-phase AC200-415 (V)

8) Patch speed 19000CPH (grain / hour)

9) Resolution ± 0.05mm (mm)

Manufactured in 2000,

PCB size: 330mmX250mm

Components can be affixed to range: 0402,0603 chip-26.5X11mm or 20mm square components

Feed station number: 60 x 2

Theory Chip Speed: 20000 (tablets / hour)

Placement accuracy: ± 0.08mm laser identification

Size and weight: L1900/W1476/H2000 & 6000KG

Power and gas supply: 3PH, 200V, 5KVA

Configuration: 0603 2 sets of each nozzle; Manual CD-ROM

Specifications

Vintage:2004

Placement:20,000cph

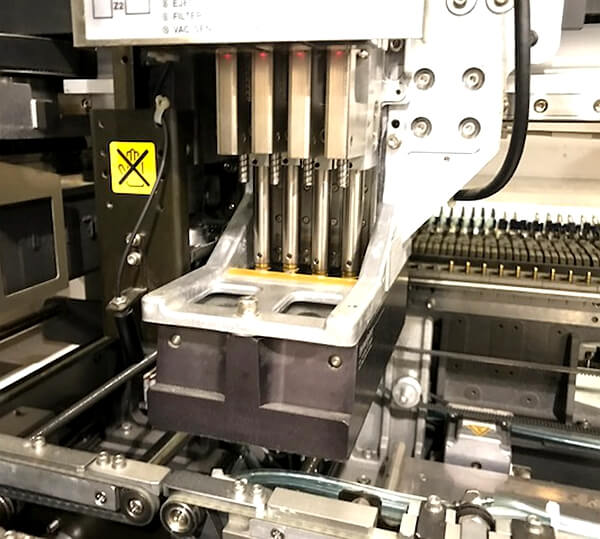

2 multi nozzle laser heads(8 nozzles)

From: 0603 (0201)chip to 26.5 x 11mm chip or 20mm square chip

Simultaneous placement of components onto two boards

Medium board size: 330 x 250mm

Large board size: 410 x 360mm

Extra large board size: 510 x 460mm

Applicable component height: 6mm, 12-20mm

Component size: 25mm, 0603 chip, from 1005 chip

to 20mm square chip or 26.5 x 11mm chip.

From 1005 chip to 50mm square chip or 50 x 150mm chip

Component placement speed: chip, IC: 20,000cph

Component placement accuracy: Laser recognition +/- 0.08mm

Vision Recognition

Max. unique components: 120 per side using 8mm tape feeders

Feeders type available: tape- 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, and 56mm.

Stick/ bulk/ tray not available

Power: 3 phase 200/220/240 or 380 VAC

Compressed Air: 71psi

Operating System: Windows NT

Programming Methods: On line: teach with placement head, teach camera, key board only

Off Line: keyboard entry, CAD data conversion with optional software

Program Size: Maximum 3000 placements per circuit, not to exceed 10,000

Maximum 100 non-matrix or 400 matrix circuits per PCB.

Data entry resolution: X/Y axis 0.0004” (o.01mm)

Teta axis (rotation) 0.05

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
