Power Supply: AC:220±10%,50/60HZ
Control Method: PC Control
1. Product Functions

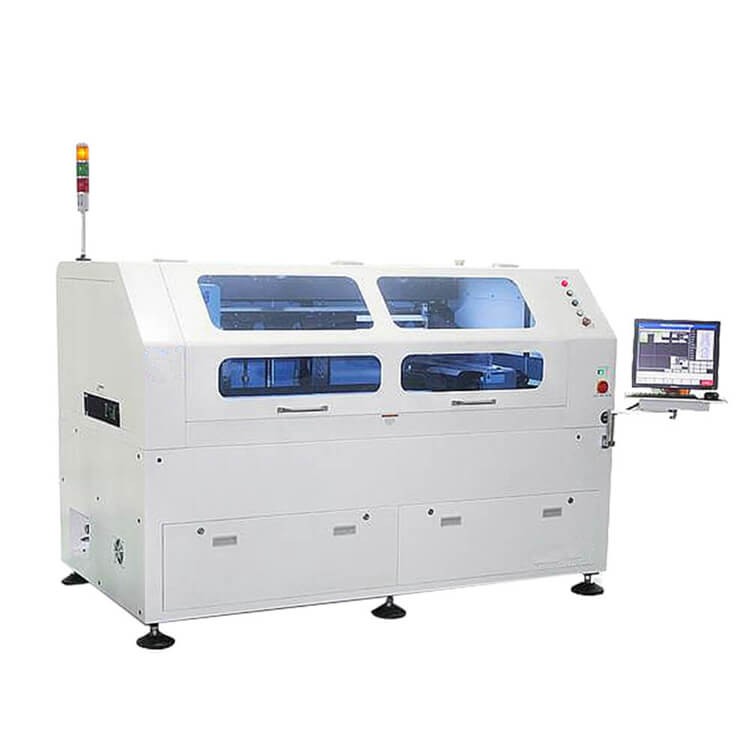

F-1200 a high accuracy lengthen printing robot designed for screen printing or stencil printing in SMT industry.
2. Product Features
a) Support wide spectrums of PCB size from 50mm x 50mm to 1200mm x 340mm and PCB thickness from 0.6mm to 6mm.
b) High printing resolution:
1. High positioning accuracy, repeat positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing
c) Automatic control improves production efficiency, controls quality and saves production cost:
1. Automatic stencil positioning;
2. Automatic PCB position calibrating.
3. Automatic adjustment of squeegee pressure;
4. Automatic printing;
5. Automatic stencil cleaning (dry-type, wet-type);
d) Adopt company independently developed suspended print head with programmable pressure adjustment. Support on-line real time pressure feedback and automatic squeegee pressure balancing.
e) Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
f) Multi-functional PCB positioning and clamping system, for convenient fast and accurate PCB positioning.
g) Upward and downward visual positioning.
h) Built-in image processing system;
i) Support 2D, SPC functions.
3. Applicable pitches of Components
a) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
b) IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball 0.2 mm.
c) Printing size?80mm x 50mm ~1200 mm x 340 mm;
d) PCB thickness: 0.6 mm ~ 6 mm
e) FPC thickness: less than 0.6 mm (excluding jig)
4. Applicable PCB Types
Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products
Repeat Position Accuracy
Printing Speed/Cycle Time
<15s (Exclude Printing & Cleaning)
Screen Stencil Size/Min
1100mm*300(Standard)?730mm*300mm(Optional, pressing plate on guide rail shall be replaced)
Screen Stencil Size/Max
Screen Stencil Thickness
20mm ~ 40mm
PCB Warpage Ratio
1%Based on diagonal length?
Bottom of Board Size
15mm (distance from pins to PCB)
Edge of Board Size
3mm (distance before PCB clamping)
Left-Right; Right-Left; Left-Left; Right-Right
50-1200mm/sec programmable control
Magnetic pin/Side support block/Flexible automatic pin?optional?
Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tableting
Programmable motor driven print head (pneumatic control print head: optional)
0-15kg programmable control
Steel squeegee (standard), rubber squeegee, and customizable other types of squeegee .
Stencil Separation Speed
Dry-type, wet-type, optional vacuum-type
Table Adjustment Range
Type of Fiducial Mark
Standard geometry shape of fiducial point, bonding pad / stencil hole
Single digital camera with upward/downward vision system
AC:220±10%,50/60HZ 1? 1.5KW
2220(W) *1220(D) *1500(H)mm (excluding the height of indicating lighthouse)
-20°C ~ +45°C
