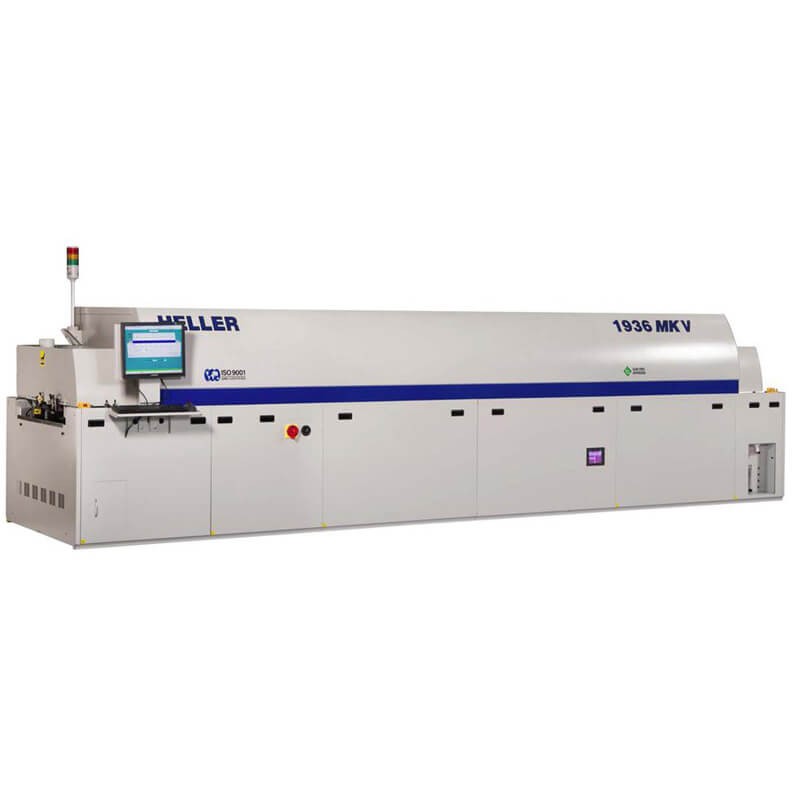

Heller 1936 MKV SMT Reflow Oven

Power Input (3 Phase) Standard:480 volts
Breaker Size:100 amps @ 480v
kW 9 - 15 Continuous
Typical Run Current 30 - 35 amps @ 480v
Optional Power Inputs Available 208/240/380/400/415 VAC
Frequency 50/60 Hz

Heller 1936 MKV SMT Reflow Oven

Specifications:

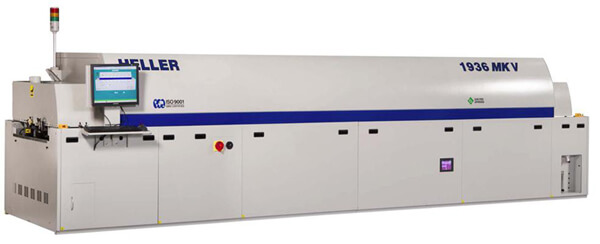

Heller 1936 MKV SMT Reflow Oven

This new oven has been designed to meet Semi S2/S8 safety standards (including toxic gases).

Formic Acid has been shown to be an effective reducing agent in fluxless solder reflow

Excellent results demonstrated for wafer bumping application in horizontal reflow oven

Fluxless reflow utilizes gas phase Formic Acid (HCOOH) to replace standard fluxing agents

Eliminates the need for pre-reflow fluxing and post-reflow flux cleanup steps

No post-reflow flux clean facilitates inline application of epoxy and inline epoxy curing solution

Feasibility has been demonstrated with production grade oven

Extensive engineering efforts in safe, precision delivery of formic acid and abatement

Fluxless Reflow Advantages

Can use any reflow profile (e.g., tent or soak profile) with formic acid

Can adjust formic acid profile in oven in conjunction with thermal reflow profile

Includes Formic acid safety system (i.e., sensors/detectors) adheres to industry standards

Includes Formic acid abatement systems for Green Process Solution

Includes real time formic acid concentration monitor system


1936 MK5 (Air)

1936 MK5 (Nitrogen)

Power Input (3 Phase) Standard

480 volts

480 volts

Breaker Size

100 amps @ 480v

100 amps @ 480v

kW

9 - 15 Continuous

9 - 15 Continuous

Typical Run Current

30 - 35 amps @ 480v

30 - 35 amps @ 480v

Optional Power Inputs Available

208/240/380/400/415 VAC

208/240/380/400/415 VAC

Frequency

50/60 Hz

50/60 Hz

Sequential Zone Turn On

S

S

Overall Oven Dimensions

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

Typical Net Weight

6380 lbs. (2900 kg)

7180 lbs. (3280 kg)

Typical Shipping Weight

7875 lbs. (3580 kg)

8980 lbs. (4080 kg)

Typical Shipping Dimension

244” x 73” x 83”

620 x 185 x 210 cm

Overall Oven Dimensions

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

Height From Floor

35.5" + 2.0"  (90 cm + 5 cm)

35.5" + 2.0"  (90 cm + 5 cm)

Maximum PCB Width

22" (55 cm)

22"  (56 cm)

Space Required Between PCB's

0.0" (0.0 cm)

0.0" (0.0 cm)

Conveyor Length On-Load

18" (46 cm) *

3" (7.5 cm)  *

Conveyor Length Off-Load

18" (46 cm) *

3" (7.5 cm)  *

Heated Tunnel Length

135"  (343 cm)

135"  (343 cm)

Process Clearance Above Mesh Belt

2.3" (5.8 cm)

2.3" (5.8 cm)
