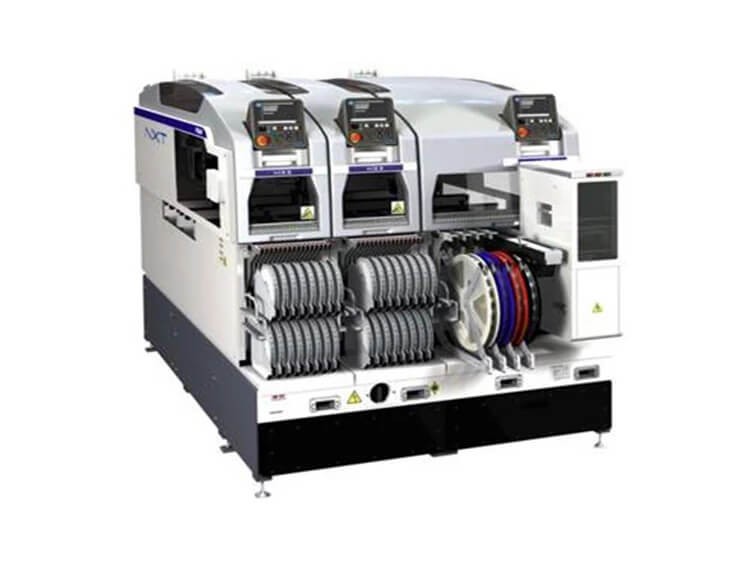

FUJI NXT M6 II Pick and Place Machine

Max PCB:510mm x 520mm
Max Component: MAX 45 (8mm tape conversion)
Speed: 3000 cph
Dimentsion: 2MII Base:740 (L) x 1934 (W)X1476 mm

FUJI NXT M6 II Pick and Place Machine

Specifications:

FUJI NXT M6 II Pick and Place Machine

M3 II / M6 II: 48mm x 48mm ~ 510mm x 534mm (double handling rail)

48mm x 48mm ~ 610mm x 534mm (single transport track)

M6 IISP: 48mm x 48mm ~ 510mm x 520mm (double handling rail)

48mm x 48mm ~ 610mm x 520mm (single handling track)

Component Type:

M3 II: MAX 20 (8mm tape conversion)

M6 II / M6 IISP: MAX 45 (8mm tape conversion)

Mounting accuracy:

H12S / H08 / H04 / OF: ± 0.05mm (3 sigma) cpk≥1.00

H01 / H02 / G04: ± 0.03mm (3 sigma) cpk≥1.00

GL: ± 0.10mm (3 sigma) cpk≥1.00

Production capacity:

H04: 6,500 cph; H01: 4,200 cph; G04: 6,800 cph; OF: M3 II not mountable /

M6 II 3000 cph; GL: 16,363 dph (0.22 sec / dot))

H04: 6,000 cph; H01: 3,500 cph; G04: 5,100 cph; OF: 2,800 cph,

GL: 16,363 dph (0.22 sec / dot))

Object components:

H12S: 0402 ~ 7.5mm x 7.5mm high: MAX 3.0mm

H08: 0402 ~ 12mm x 12mm high: MAX 6.5mm

H04: 1608 ~ 38mm x 38mm high: MAX13mm

H01 / H02 / OF: 1608 to 74 mm × 74 mm (32 mm × 180 mm) Height: MAX 25.4 mm

G04: 0402 ~ 15.0mm x 15.0mm high: MAX 6.5mm

Component Supply:

Smart feeder: corresponding to 8,12,16,24,32,44,56,72,88 mm width of the tape

Material feeder: 4≤ element width≤15mm (6≤ tube width≤18mm),

15≤ element width≤32mm (18≤ tube width≤36mm)

Tray unit: 135.9X322.6mm (JEDEC standard) (Tray unit M), 276X330mm, 138X330mm (Tray unit LT)

Machine size:

2MII Base: 740 (L) x 1934 (W)

4M II Base: 1390 (L) x 1934 (W)

H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)

Keywords:

JUKI RS-1R Pick and Place MachineJUKI RX-7R Pick and Place MachineJUKI RX-8 Pick and Place MachineJUKI RS-1R SMT Assembly LineJUKI RX-7R SMT Assembly LineJUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments JUKI productsJUKI Pick and Place Machine MachineJUKI SMT Stencil PrinterJUKI Assembly LineJUKI SMT Reflow OvenJUKI SMT Inspection MachineJUKI SMT Spare PartsSMT EquipmentJUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
