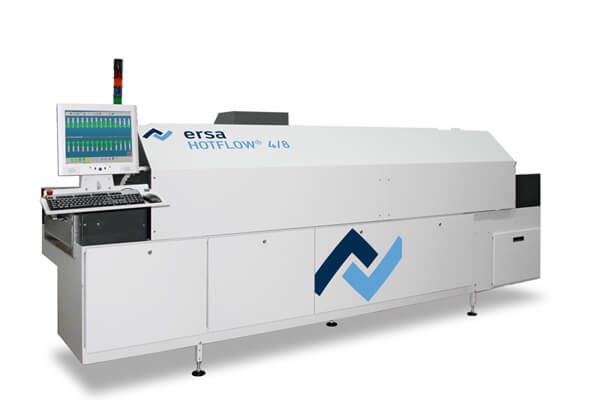

Ersa HOTFLOW 4/8 Reflow Oven

8 Heating zones
Max PCB width:560mm
Weight:1,100 kg
Dimension:3,905x1410x1350mm

Ersa HOTFLOW 4/8 SMT Reflow Oven

Specifications:

Ersa HOTFLOW 4/8 Reflow Oven

High performing compact reflow system

Multi-stage cooling, both internal and external

Efficient process gas cleaning system

Low N2 consumption

Auto Profiler for quick profile generation

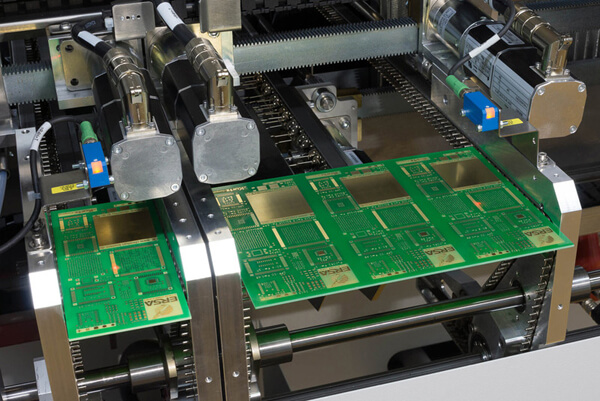

Multi-track conveyor system available

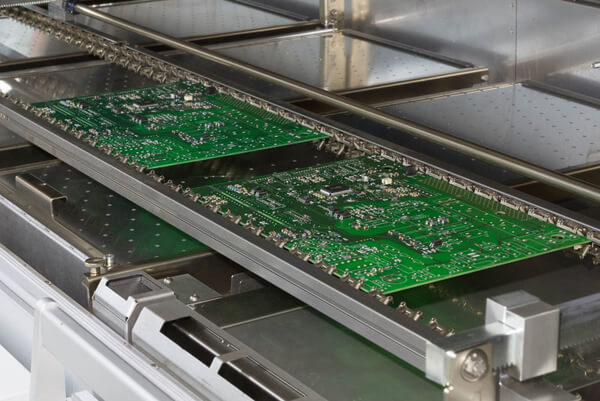

Thermally invisible center supports

Low energy consumption in continuous operation

Process control software Ersa Process Control (EPC)

Patented grip-conveyor system for flex circuits

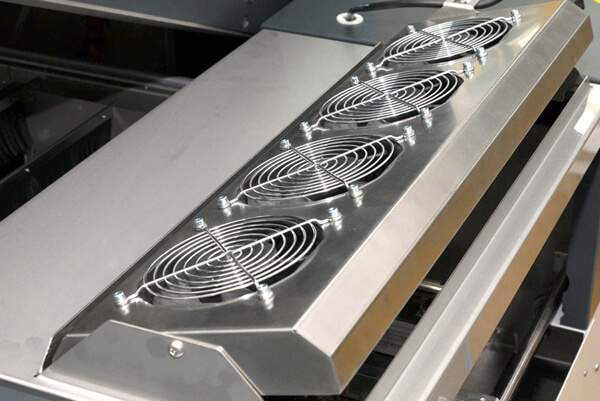

Energy-usage optimized fan motors with integrated frequency converters


Ersa HOTFLOW 4/8 Reflow Oven

The Ersa HOTFLOW 4/08 Reflow Soldering System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Dimensions

Length: 3,905 mm

Width: 1,410 mm

Height: 1,350 mm

Weight app. 1,100 kg

Conveyor system

Working width: 45-560 mm, infinitely, automatically adjustable

Clear passage height: +32/-40 mm

Center support, infinitely, automatically adjustable

Conveyor speed: 20-200 cm/min

Pin-and-chain conveyor with 3 / 4 / 5 mm pin length

Process zone

Process Length: 3,260 mm

Length Heated: 1,525 mm

Length Cooled: 1,735 mm

Heating system

Convection heating modules, 8 units in total

(Preheating up to 6 units, reflow zone 2 units)

Volumetric flow rate each module adjustable up to 500 m3/h

Rated power each module: 3.3 kW

Cooling

3 level cooling zone with water back cooling

Electrical data

400 V, 3 Phasen, N, P, 50/60 Hz

Continuous output during operation: appr. 6-8 kW

Exhaust

Extraction capacity 2 stacks each 300-600 m3/h, monitored


Options:

Pin-and-chain conveyors 3 / 4 / 5 mm pin length

Pin-and-chain conveyors  with low-mass center supports

Automatic width adjustment of conveyors and low-mass center supports

Up to 2 tracks with low-mass center supports in system

Patented grip conveyor system for flex boards

For an oven with single track, low-mass tubular supports are ava
