Ersa HOTFLOW 3/14 Reflow Oven

7 Heating zones
Max PCB width:580mm
Dimensions: 5,190x1,530x1,450 mm
Weight appr. 2,500 kg

Ersa HOTFLOW 3/14 Reflow Oven

Specifications:


Ersa HOTFLOW 3/14 Reflow Oven

Excellent heat transfer with the most varied board assemblies

Rest-oxygen monitoring with low N2 consumption

Low energy consumption through intelligent energy management

Multi-level controlled cooling

Multi-level process gas cleaning system

"On the fly" maintenance for increased machine availability / uptime

Multi-track conveyor system (1-4)

Ersa Process Control (EPC) for continuous process monitoring

Ersa Auto Profiler software for quickly generating temperature profiles


Ersa HOTFLOW 3/14 Reflow Oven

The Ersa HOTFLOW 3/14 reflow system is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Dimensions

Length: 5,190 mm

Width: 1,530 mm

Height: 1,450 mm

Weight appr. 2,500 kg

Conveyor system

Working width: 45-580 mm automatically infinitely adjustable

Clear passing height: +25 (35)/-37 mm

Centre support, automatically infinitely adjustable

Conveyor speed: 20-200 cm/min

Pin-and-chain conveyor with 3, 4 or 5 mm pins

Process zone

Process length: 3,790 mm

Heated length: 2,650 mm

Cooling length: 1,140 mm

Heating system

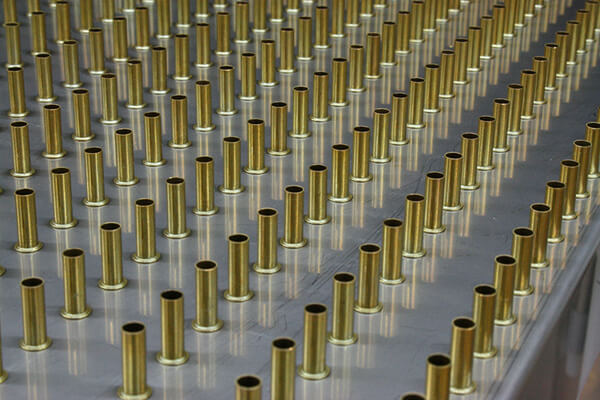

Up to 14 convections heating cassettes

(Preheat zone up to 10 cassettes, reflow zone up to 4 cassettes)

Volumetric flow rate each module, adjustable up to 500 m3/h

Rated power each module: 3.3 kW

Cooling

Up to 3 level cooling zone with water back cooling

Electrical data

400 V, 3 Phase, N, Ground, 50/60 Hz

Continuous output during operation: appr. 9-15 kW

Exhaust

Extraction capacity 2 stacks each 400 m3/h, monitored


Options:

Multi-track conveyor system with separate drives each track

Connectable center supports

Inert atmosphere feature, available with rest-oxygen monitoring and control

Metering of N2 consumption

Power-cooling with 3 convection modules and "on the fly" process gas cleaning

Emergency power supply

Ersa Process Control (EPC)

Auto Profiler

Energy consumption computation

Quick profile change
