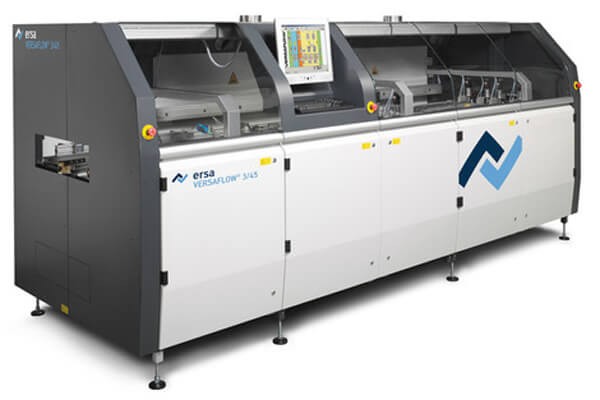

ERSA VERSAFLOW 3/45 Selective Soldering Machine

PCB size up to 406 x 508 mm
Mini-wave 13 kg up to 6 pots
Dimension: 7,500 mmx1,750x1,650 mm

ERSA VERSAFLOW 3/45 Selective Soldering Machine

Specifications:

ERSA VERSAFLOW 3/45 Selective Soldering Machine

High end selective soldering system to integrate into in-line manufacturing concepts

Mini-wave soldering for high flexibility or multi-wave soldering for high volume applications

Product change without loss in production time with the multi-wave process

Parallel process through separation of fluxing, preheating and soldering cycle

Use of up to 4 flux spray heads

Flexible system configuration on account of modularity of the design

Optional board examination systems

Ideal for linking to manual workstations or peripheral equipment

Secure process control with monitoring of all relevant processes

CAD-Assistant for offline programming

Link for traceability systems for process control

VERSAFLOW 3/45

In order to satisfy all demands in regards to flexibility, the third generation of Ersa´s VERSAFLOW selective soldering systems is based on a modular platform. Depending on the application and on the throughput requirements called for, additional flux, preheat and solder modules can be integrated into the system. In the maximum configuration level of the VERSAFLOW, the system can therefore operate with up to three solder modules, and each of these modules can again be configured with two mini-wave solder baths. In total, up to 6 mini-wave solder bath can be installed in a system, and each solder module can be preceded by a preheat unit.

Doubling the throughput rate, maximum expansion

Multi-wave solder bath is available as an alternative to the single-wave bath. For configurations with the single-wave bath, additional top side preheaters are available for both the preheat zones as well as over the solder baths. With the dual-track option, the throughput rate can be doubled without increasing the footprint of the unit. If the size of the board assembly permits, the preheaters can be segmented, and this feature will further increase throughput. The VERSAFLOW offers its user a maximum of opportunities to configure his system. On account of the high throughput, the amortization period is rather short. With the Ersa VERSAFLOW, the highest throughput rate of any system currently on the market is achieved.

Dimensions

Length from 2,450 to 7,500 mm

Width approx. 1,750 mm

Height approx. 1,650 mm

Conveyor support

Segmented pin and chain / roller conveyor

PCB width: 63.5-508 mm (option 600 mm)

PCB length: 127-508 mm (option 600 mm)

Maximum PCB top side clearance: 120 mm

Maximumg PCB bottom side clearance: 60 mm (30 mm upto z – variable)

Maximum PCB weight: 5 kg (option 15 kg)

Media supply

Nitrogen

Pneumatic system

Electric supply

Extracted air

Flux module

Drop-Jet in different sizes

Preheat module

Dynamic IR heating, convection or combination of IR and convection

Solder module

Electromagnetic solder pot

Mini-wave 13 kg up to 6 pots

Multi-wave soldering area up to 356 x 356 / 360 x 460 / 370 x 425 mm

PCB size up to 406 x 508 mm
